Berlon | B-Low Profile Series | Skid Steer Bucket

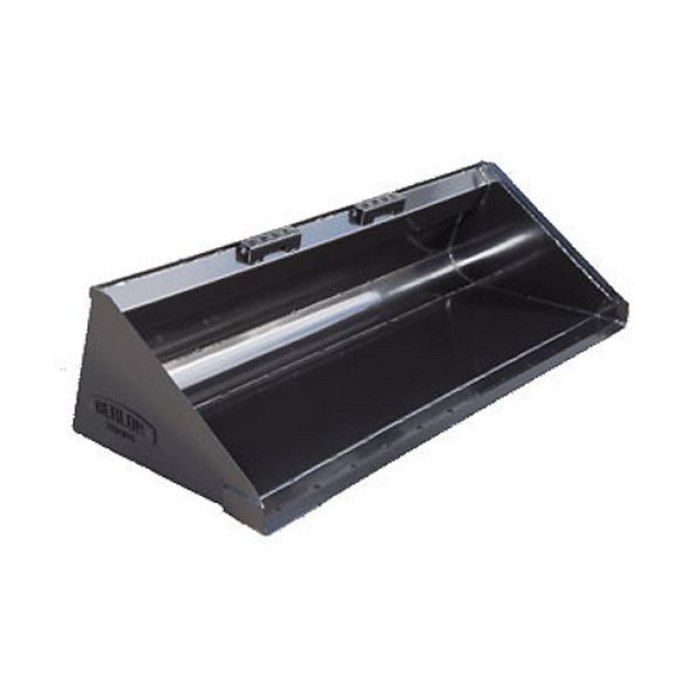

Introducing the Berlon B Series Low Profile Buckets: Setting New Standards in Strength, Durability, and Performance.

Our Low Profile Buckets from the Berlon B Series are engineered with structured design features to deliver strength, durability, and performance. Designed for optimal visibility and rigidity, these buckets redefine excellence in material handling.

Berlon B Series Low Profile Buckets: Built to Exceed Expectations. Trust in Berlon to provide buckets engineered to the highest standards of quality and versatility. Experience the difference with our Low Profile Buckets – designed the way they should be.

**Includes MPUF-1 Universal Mounting plate.  HD Package Includes MPUF-1HD Universal mounting plate and double reinforcement kit. Recommended for track machines and others over 75HP.

Features

• Superior Visibility: Enhanced design provides excellent visibility for precision work.
• Strength: Greater strength and overall rigidity create reliable performance in any task.
• Extended Lip Option: Customize your bucket with an extended lip for increased visibility and capacity.
• Universal Mounting Plate: Each bucket comes standard with a universal mounting plate for easy installation.
• Durable Finish: Powder painted black finish ensures long-lasting protection against wear and tear.

Additional Benefits:

• Heavy-Duty Wear Bars: Equipped with heavy-duty wear bars for extended longevity.
• Sharp Edge for Back Dragging: Designed with a sharp edge for efficient back dragging operations.
• Versatile Sizing: Available in widths of 60", 66", 72", 78", and 84" to accommodate various applications.

• 3/16” thick steel body
• 3/4” x 6” weld-on cutting edge with holes
• Radius kick-out plate for added strength and
easy clean-out
• Reinforcement tube across back of bucket for
added strength
• Bucket bottom includes a heavy-duty dimple plate
*A Berlon Exclusive*

Specification

66" Bucket

• Inside Dimension: 66"
• Outside Dimension: 67.5"
• Height: 21"
• Depth: 33"
• Angle: 70-Degree
• Weight: 465 LBS
• Heaped Capacity: 17.6 cu/ft

72" Bucket

• Inside Dimension: 72"
• Outside Dimension: 73.5"
• Height: 21"
• Depth: 33"
• Angle: 70-Degree
• Weight: 515 LBS
• Heaped Capacity: 19.3 cu/ft

78" Bucket

• Inside Dimension: 78"
• Outside Dimension: 79.5"
• Height: 21"
• Depth: 33"
• Angle: 70-Degree
• Weight: 541 LBS
• Heaped Capacity: 20.9 cu/ft

84" Bucket

• Inside Dimension: 84"
• Outside Dimension: 85.5"
• Height: 21"
• Depth: 33"
• Angle: 70-Degree
• Weight: 571 LBS
• Heaped Capacity: 22.5 cu/ft

Bucket Add on Options

• Bolt-On Cutting Edge
• Bolt-On Rake Tooth Edge
• Spill Guard
• Bolt-On HD Teeth (Factory Installed Only)
• Bolt-On Side Cutters
• Bolt-On Tooth Bar
• Bolt-On Tooth Bar, Over Bolt-On Edge
• Change back angle
