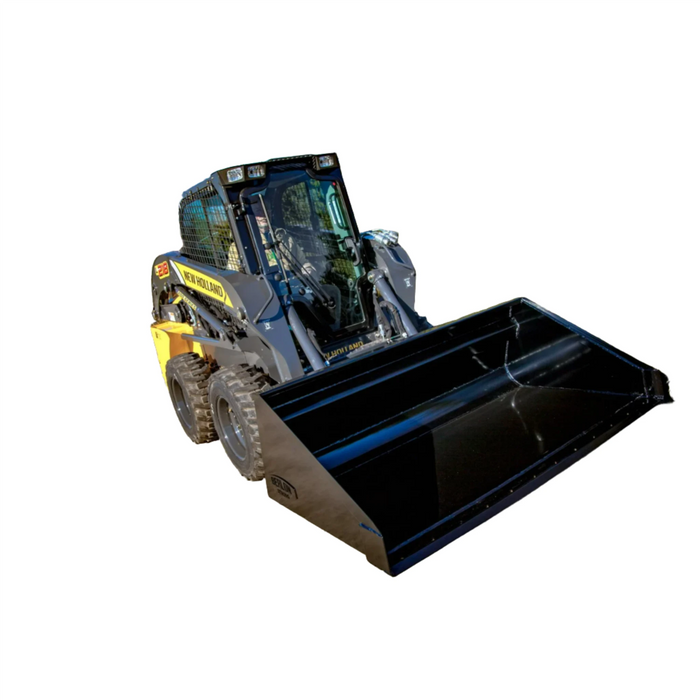

Berlon | FMX Series | Skid Steer Bucket

Unlock unmatched performance and durability with Berlon’s FMX Series Bucket. Engineered for farm work and extreme applications, this bucket is designed to exceed expectations in even the toughest conditions.

Experience the difference with Berlon’s FMX Series Bucket. Whether you're tackling routine farm chores or taking on extreme applications, this bucket delivers unmatched performance and reliability every time.

**Includes MPUF-1 Universal Mounting plate. HD Package Includes MPUF-1HD Universal mounting plate and double reinforcement kit. Recommended for track machines and others over 75HP.

Common Uses:

• Feed handling
• Manure management
• Grading and leveling
• Landscaping projects
• Compatible with higher horsepower machines

Features

1. Deep Floor Design: The FMX Series Bucket boasts a deep floor that enhances cutting edge visibility, allowing for precise control and efficient operation. Say goodbye to guesswork and hello to increased productivity.

2. Sharp Back Edge: Cleaning up has never been easier, thanks to the sharp back edge of this bucket. Perfect for back-dragging, it effortlessly tackles debris and ensures a thorough clean-up after every job.

3. Versatile Applications: From feeding to grading, landscaping to manure handling, the FMX Series Bucket is a versatile tool that excels in a variety of tasks. Its adaptability makes it an indispensable asset on the farm or job site.

Bucket Add-On Options

• Bolt-On Cutting Edge
• Bolt-On Rake Tooth Edge
• Spill Guard (Welded-On)
• Bolt-On HD Teeth (Factory Installed Only)
• Bolt-On Tooth Bar
• Bolt-On Tooth Bar, Over Bolt-On Edge
• Bolt-On side cutters (standard on FMX 84” & 90”)

Specifications

• 3/16” thick steel body
• 3/4” x 6” weld-on cutting edge with holes
• Radius kick-out plate for added strength and easy clean-out
• Reinforcement tube across back of bucket for added strength

• Model: FMX-72

  • Inside dimension: 72.0 in.
  • Outside dimension: 73.5 in.
  • Height: 25.0 in.
  • Depth: 44.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 641 lbs.
  • Heaped capacity: 32.1 cu. ft.
  • Wear-bars: 4 (1/2” x 3”)
  • Dimple plate: No
  • HD package: Optional

• Model: FMX-78

  • Inside dimension: 78.0 in.
  • Outside dimension: 79.5 in.
  • Height: 25.0 in.
  • Depth: 44.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 671 lbs.
  • Heaped capacity: 34.8 cu. ft.
  • Wear-bars: 4 (1/2” x 3”)
  • Dimple plate: No

• Model: FMX-84

  • Inside dimension: 84.0 in.
  • Outside dimension: 85.5 in.
  • Height: 25.0 in.
  • Depth: 44.0 in.
  • Weight: 884 lbs.
  • Angle: 70 degrees (other angles available)
  • Heaped capacity: 37.4 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple plate: Yes
  • HD package: Standard

• Model: FMX-90

  • Inside dimension: 90.0 in.
  • Outside dimension: 91.5 in.
  • Height: 25.0 in.
  • Depth: 44.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 907 lbs.
  • Heaped capacity: 40.1 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple plate: Yes
