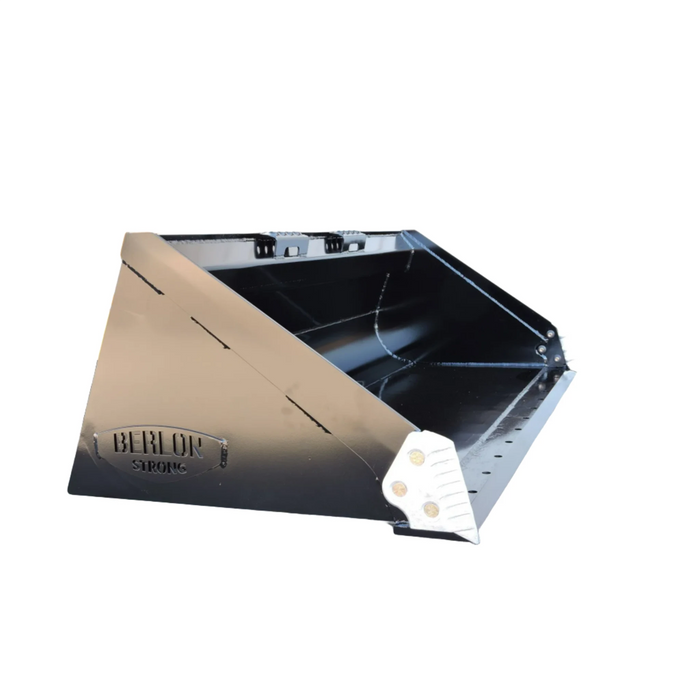

1. Extended Lip Design: Enjoy unparalleled cutting edge visibility thanks to the extended lip design. This feature allows operators to maintain precise control and accuracy during operation, leading to improved efficiency and productivity.

2. Heavy Duty Construction: Built to withstand the toughest tasks, the Heavy Duty Extended Lip Bucket boasts a sturdy 1/4” thick steel body. This robust construction ensures longevity and reliability, making it suitable for machines 75HP and greater.

3. Enhanced Visibility: With an additional 3 inches of depth compared to our B series bucket, you'll experience even greater cutting edge visibility. This allows for more precise maneuvering, reducing the risk of errors and increasing overall performance.

4. Weld-On Cutting Edge: Equipped with a 3/4” x 6” weld-on cutting edge featuring strategically placed holes, this bucket ensures exceptional cutting efficiency and longevity. Say goodbye to frequent replacements and hello to consistent performance.

5. Bolt-On Side Cutters: For added versatility and durability, our bucket comes with bolt-on side cutters. These cutters enhance the bucket's cutting ability and can be easily replaced when needed, extending the bucket's lifespan.

6. Kick-Out Plate: The radius kick-out plate not only reinforces the bucket's strength but also facilitates easy clean-out, saving you valuable time and effort during maintenance.

7. Reinforcement Tube: To further enhance durability, the bucket features a reinforcement tube across the back, providing additional strength where it's needed most. This ensures the bucket can handle heavy loads and rigorous use without compromise.

8. Heavy-Duty Dimple Plate: Exclusive to Berlon, the heavy-duty dimple plate on the bucket bottom offers superior resistance against wear and tear, protecting your attachment and ensuring long-term performance.

• Bolt-On Cutting Edge
• Bolt-On Rake Tooth Edge
• Spill Guard (Welded-On)
• Bolt-On HD Teeth (Factory Installed Only)
• Bolt-On Tooth Bar
• Bolt-On Tooth Bar, Over Bolt-On Edge

• 3” deeper than our B series bucket, for even greater cutting edge visibility
• 1/4” thick steel body
• 3/4” x 6” weld-on cutting edge with holes
• Bolt-on side cutters
• Radius kick-out plate for added strength and easy clean-out
• Reinforcement tube across back of bucket for added strength
• Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive

• Model: BELHD-72

  • Inside dimension: 72.0 in.
  • Outside dimension: 73.5 in.
  • Height: 23.5 in.
  • Depth: 36.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 823 lbs.
  • Heaped capacity: 23.5 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple plate HD package: Yes
  • HD package: Standard

• Model: BELHD-78

  • Inside dimension: 78.0 in.
  • Outside dimension: 79.5 in.
  • Height: 23.5 in.
  • Depth: 36.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 891 lbs.
  • Heaped capacity: 25.5 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple plate HD package: Yes

• Model: BELHD-84

  • Inside dimension: 84.0 in.
  • Outside dimension: 85.5 in.
  • Height: 23.5 in.
  • Depth: 36.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 959 lbs.
  • Heaped capacity: 27.4 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple plate HD package: Yes

• Model: BELHD-90

  • Inside dimension: 90.0 in.
  • Outside dimension: 91.5 in.
  • Height: 23.5 in.
  • Depth: 36.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 1027 lbs.
  • Heaped capacity: 29.4 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple plate HD package: Yes

Manufacturer’s Limited Warranty

Berlon Industries’ manufactured products are warranted to the original purchaser, to be free from defect in material and workmanship for 12 months from the end user’s date of purchase. This warranty is the sole warranty of Berlon Industries. No other warranty is expressed or implied. No other warranty may be expressed or implied by Berlon dealers, employees, or agents. This warranty is void on products that have been modified or repaired without the prior consent of Berlon Industries. Berlon Industries will not be held responsible for work performed without prior authorization.
• Components considered as wear items, or ground engaging are not covered by warranty.
• Warranty does not cover damage from misuse, accidents, or negligence.
• Property damage, production loss, and delay for replacement of an attachment caused by defective material(s) or workmanship are not covered by warranty.
• Warranty does not cover any travel expenses.
• Warranty is limited to repair or replacement of parts on Berlon products, determined by Berlon to be defective in materials and/or workmanship. To make a request for warranty consideration:
• Supply Berlon with photo(s) along with a completed warranty claim form (found on our website or in the dealer portal) regarding the warranty situation to be considered.
• Upon review of warranty claim, a RGA (Return Goods Authorization) number will be assigned and replacement part(s) sent prepaid ground freight and invoiced.
• Defective part(s) need to be returned prepaid shipping to Berlon Industries, for warranty processing. Package must be clearly marked with a RGA# assigned to the claim. Upon inspection and approval, the account will be credited for defective part(s).
• Product must be registered and all steps above completed in order to process any warranty claim. The original manufacturer warrants products that Berlon Industries does not manufacture. Berlon Industries, assumes no liability, responsibility, or warranty for these items, but simply passes on manufacturers’ warranties.
Limitations The liability of Berlon for any and all losses and damages incurred as a result of a Warranty Event or any other cause whatsoever, including the negligence of Berlon, irrespective of whether a defect is or was discoverable or latent, shall in no event exceed the purchase price of the Covered Product with respect to which such losses or
damages are claimed. Under no circumstances will Berlon be liable to any person or entity for any loss arising out of or caused by delay in delivery. Any remedy for the breach of any obligation arising from or relating to the
sale of the Covered Products or arising out of the purchase or sale of the Covered Products, whether derived from warranty or otherwise, shall be limited to the remedies expressly specified in this warranty. ANY LIABILITY FOR ANY OTHER DAMAGE OR LOSS, INCLUDING, WITHOUT LIMITATION, ANY LOST PROFITS, LOST SALES, LOSS OF FUEL OR OTHER PRODUCTS, LOSS OF USE OF EQUIPMENT, COSTS OF BUSINESS
INTERRUPTION OR DOWN TIME, LOSS OF BUSINESS OPPORTUNITY, CAPITAL COSTS, COST OF SUBSTITUTE EQUIPMENT, FACILITIES OR SERVICE, COST OF ENVIRONMENTAL REMEDIATION, DIMINUTION IN PROPERTY VALUE, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR ANY TYPE OR NATURE, IS
HERBY DISCLAIMED AND EXCLUDED.

Warranty             Warranty Claim Form
