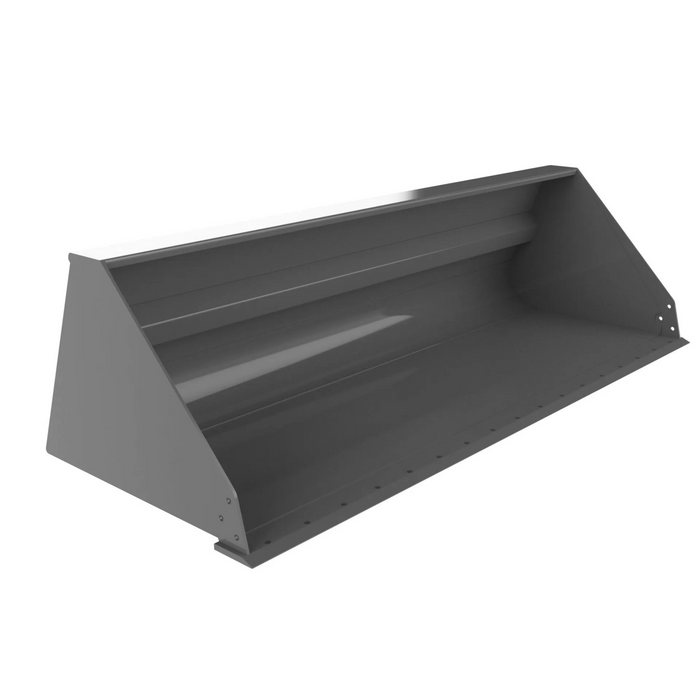

Berlon | High Volume Material Bucket Series | Skid Steer Bucket

Elevate your productivity and efficiency with Berlon’s High Volume Material Bucket, the ultimate solution for handling large quantities of materials with ease. Designed for versatility and durability, this bucket is your go-to choice for a wide range of high volume applications.

Experience the power of Berlon’s High Volume Material Bucket and take your productivity to the next level. With its unmatched capacity and versatility, this bucket is the perfect addition to any farm or job site.

**Includes MPUF-1 Universal Mounting plate. HD Package* Includes MPUF-1HD Universal mounting plate and double reinforcement kit. Recommended for track machines and others over 75HP

Common Uses:

• Handling livestock feed
• Snow removal
• Digging out bag silage
• Landscaping projects
• Farm use

Bucket Add-On Options

• Bolt-On Cutting Edge
• Bolt-On Rake Tooth Edge
• Spill Guard (Welded-On)
• Bolt-On HD Teeth (Factory Installed Only)
• Bolt-On Side Cutters
• Bolt-On Tooth Bar
• Bolt-On Tooth Bar, Over Bolt-On Edge

Features

1. Optimized Design: The High Volume Material Bucket is expertly engineered to maximize capacity, allowing you to tackle large quantities of feed, snow, bag silage, and more with confidence. Its efficient design ensures optimal performance in any application.

2. Versatile Applications: From farm chores to landscaping projects, this bucket excels in a variety of tasks. Whether you're handling livestock feed, removing snow, or digging out bag silage, the High Volume Material Bucket is up to the challenge.

3. Durable Construction: Built to withstand the demands of heavy-duty use, Berlon’s High Volume Material Bucket is constructed from high-quality materials and built to last. You can trust it to deliver reliable performance day in and day out.

Specifications

• 3/16” thick steel body
• 3/4” x 6” weld-on cutting edge with holes
• Radius kick-out plate for added strength and easy clean-out
• Reinforcement tube across back of bucket for added strength
*Combined MDHV, SLMB, and HDHV Series

• Model: HVMB-60

  • Inside Dimension: 60.0 in.
  • Outside Dimension: 61.5 in.
  • Height: 29.0 in.
  • Depth: 39.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 510 lbs.
  • Heaped Capacity: 27.5 cu. ft.
  • Wear-bars: 3 (1/2” x 3”)

• Model: HVMB-66

  • Inside Dimension: 66.0 in.
  • Outside Dimension: 67.5 in.
  • Height: 29.0 in.
  • Depth: 39.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 553 lbs.
  • Heaped Capacity: 30.2 cu. ft.
  • Wear-bars: 3 (1/2” x 3”)

• Model: HVMB-72

  • Inside Dimension: 72.0 in.
  • Outside Dimension: 73.5 in.
  • Height: 29.0 in.
  • Depth: 39.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 573 lbs.
  • Heaped Capacity: 33.1 cu. ft.
  • Wear-bars: 3 (1/2” x 3”)

• Model: HVMB-78

  • Inside Dimension: 78.0 in.
  • Outside Dimension: 79.5 in.
  • Height: 29.0 in.
  • Depth: 39.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 607 lbs.
  • Heaped Capacity: 35.7 cu. ft.
  • Wear-bars: 3 (1/2” x 3”)

• Model: HVMB-84

  • Inside Dimension: 84.0 in.
  • Outside Dimension: 85.5 in.
  • Height: 29.0 in.
  • Depth: 39.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 710 lbs.
  • Heaped Capacity: 38.5 cu. ft.
  • Wear-bars: 3 (1/2” x 3”)

• Model: HVMB-96

  • Inside Dimension: 96.0 in.
  • Outside Dimension: 97.5 in.
  • Height: 29.0 in.
  • Depth: 39.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 840 lbs.
  • Heaped Capacity: 44.0 cu. ft.
  • Wear-bars: 4 (1/2” x 3”)


• Model: HVMB-102

  • Inside Dimension: 102.0 in.
  • Outside Dimension: 103.5 in.
  • Height: 29.0 in.
  • Depth: 39.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 925 lbs.
  • Heaped Capacity: 46.7 cu. ft.
  • Wear-bars: 4 (1/2” x 3”)
