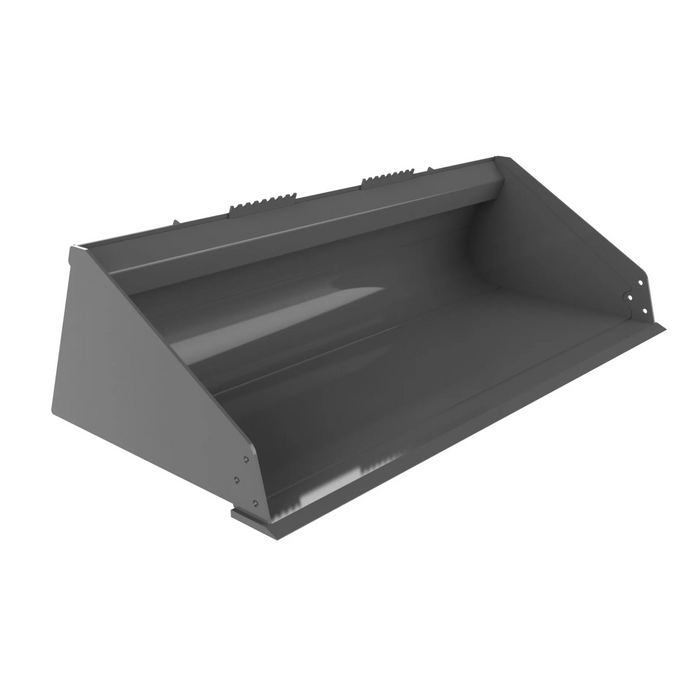

Berlon | Low Profile Extended Lip bucket Series | Skid Steer Bucket

Discover the Berlon BEL Series Low Profile Extended Lip Bucket: Redefining Visibility and Capacity.

Berlon’s Low Profile Extended Lip bucket has great cutting edge visibility and increased capacity, making it the preferred choice among skid steer operators.

Berlon BEL Series Low Profile Extended Lip Buckets: Engineered for Performance, Built for Durability.

Experience the difference with Berlon BEL Series, designed to exceed expectations in excavating, landscaping, construction, and general-purpose applications. Unlock your skid steer's potential with the great visibility and capacity of our BEL Series buckets.

Bucket Add-On Options

• Bolt-On Cutting Edge
• Bolt-On Rake Tooth Edge
• Spill Guard
• Bolt-On HD Teeth (Factory Installed Only)
• Bolt-On Side Cutters
• Bolt-On Tooth Bar
• Bolt-On Tooth Bar, Over Bolt-On Edge

Specifications

• 3” deeper than our B series bucket, for even greater cutting-edge visibility
• 3/16” thick steel body
• 3/4” x 6” weld-on cutting edge with holes
• Radius kick-out plate for added strength and easy clean-out
• Reinforcement tube across back of bucket for added strength
• Bucket bottom includes a heavy-duty dimple plate A Berlon Exclusive

• Model: BEL-60

  • Inside Dimension: 60.0 in.
  • Outside Dimension: 61.5 in.
  • Height: 21.0 in.
  • Depth: 33.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 405 lbs.
  • Heaped Capacity: 16.0 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple Plate: No
  • HD Package (Back height changes to 22.5”): Optional

• Model: BEL-66

  • Inside Dimension: 66.0 in.
  • Outside Dimension: 67.5 in.
  • Height: 21.0 in.
  • Depth: 36.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 486 lbs.
  • Heaped Capacity: 19.3 cu. ft.
  • Wear-bars: 0 (1/2” x 3”)
  • Dimple Plate: Yes
  • HD Package (Back height changes to 22.5”): Optional

• Model: BEL-72

  • Inside Dimension: 72.0 in.
  • Outside Dimension: 73.5 in.
  • Height: 21.0 in.
  • Depth: 36.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 539 lbs.
  • Heaped Capacity: 21.0 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple Plate: Yes
  • HD Package (Back height changes to 22.5”): Optional

• Model: BEL-78

  • Inside Dimension: 78.0 in.
  • Outside Dimension: 79.5 in.
  • Height: 21.0 in.
  • Depth: 36.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 566 lbs.
  • Heaped Capacity: 22.8 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple Plate: Yes
  • HD Package (Back height changes to 22.5”): Optional

• Model: BEL-84

  • Inside Dimension: 84.0 in.
  • Outside Dimension: 85.5 in.
  • Height: 21.0 in.
  • Depth: 36.0 in.
  • Angle: 70 degrees (other angles available)
  • Weight: 619 lbs.
  • Heaped Capacity: 24.5 cu. ft.
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple Plate: Yes
  • HD Package (Back height changes to 22.5”): Optional
