Berlon | Material Long Bucket | Skid Steer Bucket

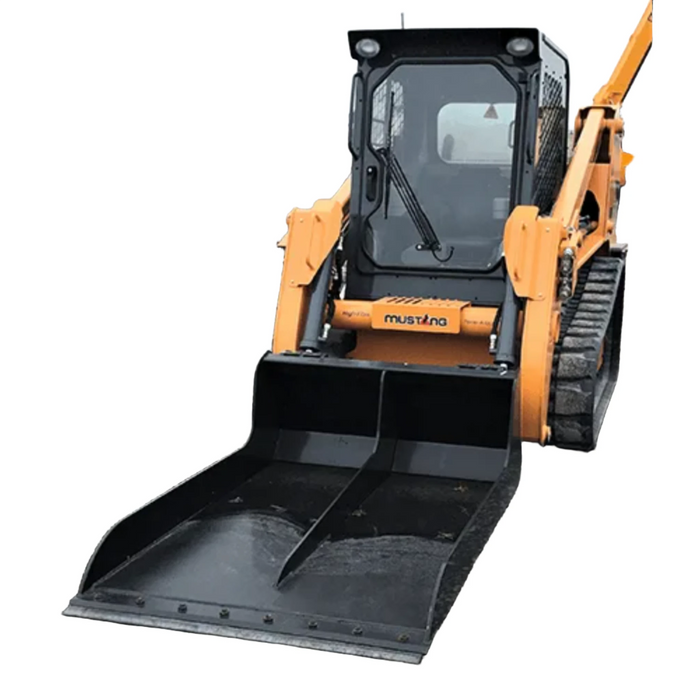

Introducing Berlon's Material Long Bucket - the ultimate solution for efficient material cleanup in demanding environments like quarries and mines. Engineered with a low profile and an extended floor, this bucket ensures effortless and safe removal of accumulated material under conveyors. Maximize productivity and safety with Berlon's innovative design, tailored for optimal performance in high-traffic areas. Say goodbye to time-consuming cleanup tasks and hello to streamlined operations with Berlon's Material Long Bucket.

**Includes MPUF-1HD Universal Mounting plate.

Bucket Add-On Options

• Bolt-On Rake Tooth Edge
• Bolt-On HD Teeth (Factory Installed Only)

Specifications

• 1/2” thick side plates
• 3/4” x 8” reversible bolt on cutting edge
• Heavy duty frame
• Four (4) standard sizes, designed to meet a variety of applications
• Single or double gusset construction on 48” and wider buckets
• Custom sizes are available

• Model: MLB-28 x 48

  • Inside Dimension: 28 in.
  • Outside Dimension: 29.5 in.
  • Height: 21.0 in.
  • Depth: 48 in.
  • Side Height: 6 in.
  • Weight: 400 lbs.
  • Heaped Capacity: N/A
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple Plate: N/A
  • HD Package: Standard

• Model: MLB-36 x 72

  • Inside Dimension: 36 in.
  • Outside Dimension: 37.5 in.
  • Height: 21.0 in.
  • Depth: 72 in.
  • Side Height: 6 in.
  • Weight: 670 lbs.
  • Heaped Capacity: N/A
  • Wear-bars: 2 (1/2” x 3”)
  • Dimple Plate: N/A

• Model: MLB-48 x 60

  • Inside Dimension: 48 in.
  • Outside Dimension: 49.5 in.
  • Height: 21.0 in.
  • Depth: 60 in.
  • Side Height: 6 in.
  • Weight: 720 lbs.
  • Heaped Capacity: N/A
  • Wear-bars: 3 (1/2” x 3”)
  • Dimple Plate: N/A

• Model: MLB-48 x 72

  • Inside Dimension: 48 in.
  • Outside Dimension: 49.5 in.
  • Height: 21.0 in.
  • Depth: 72 in.
  • Side Height: 6 in.
  • Weight: 800 lbs.
  • Heaped Capacity: N/A
  • Wear-bars: 3 (1/2” x 3”)
  • Dimple Plate: N/A
