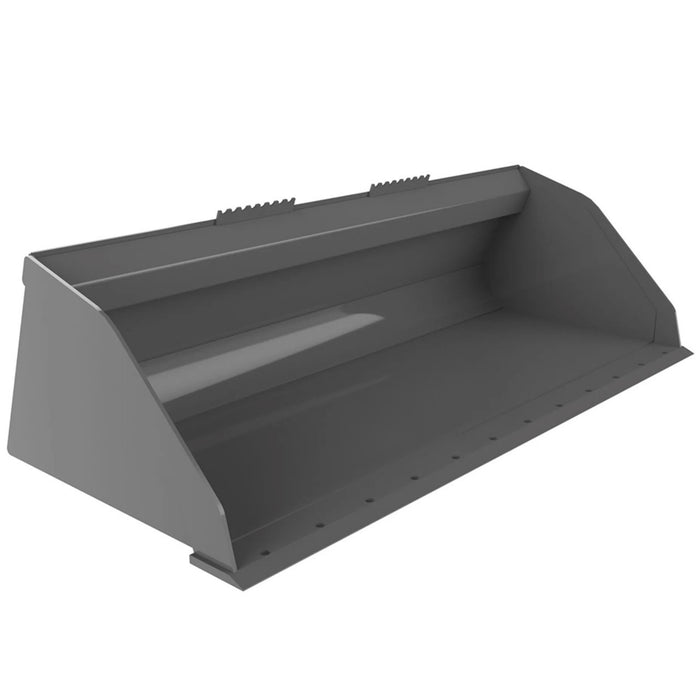

Berlon | Utility Bucket | UT Series | Skid Steer Bucket

Discover the versatility and reliability of Berlon’s Utility Bucket, your go-to solution for handling various materials with ease. Crafted from durable 3/16” thick steel, this bucket is built to withstand rigorous tasks while offering exceptional performance.

Versatile, durable, and designed to exceed expectations, Berlon’s Utility Bucket is the perfect addition to your equipment arsenal. Experience unmatched performance and reliability for all your material handling needs.

Common Uses:

• General purpose handling of materials
• Ideal for mulch, gravel, and other dry materials

Features

1. General Purpose Design: Whether you're moving mulch, gravel, or other dry materials, the Utility Bucket is designed to excel in a wide range of applications. Its versatility makes it an indispensable tool for landscaping, construction, and agricultural tasks.

2. Weld-On Cutting Edge: Equipped with a 3/4” x 6” weld-on cutting edge featuring strategically placed holes, this bucket ensures superior cutting efficiency and longevity. Say goodbye to frequent replacements and hello to consistent performance.

3. Kick-Out Plate: The radius kick-out plate not only reinforces the bucket's strength but also facilitates easy clean-out, saving you valuable time and effort during maintenance.

4. Reinforcement Tube: For added durability and strength, the bucket features a reinforcement tube across the back. This ensures reliable performance even under heavy loads, making it a dependable choice for demanding tasks.

Specifications

• 3/16” thick steel body
• 3/4” x 6” weld-on cutting edge with holes
• Radius kick-out plate for added strength and easy clean-out
• Reinforcement tube across back of bucket for added strength

• Model #: UT-48

  • Inside Dimension (in.): 48.0
  • Outside Dimension (in.): 49.5
  • Height (in.): 21.0
  • Depth (in.): 33.0
  • Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 353
  • Heaped Capacity (cu. ft.): 12.8
  • Wear-bars (1/2” x 3”): 2
  • Dimple Plate: No
  • HD Package: Optional (Back height changes to 22.5”)

• Model #: UT-54

  • Inside Dimension (in.): 54.0
  • Outside Dimension (in.): 55.5
  • Height (in.): 21.0
  • Depth (in.): 33.0
  • Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 385
  • Heaped Capacity (cu. ft.): 14.4
  • Wear-bars (1/2” x 3”): 2
  • Dimple Plate: No
  • HD Package: N/A

• Model #: UT-60

  • Inside Dimension (in.): 60.0
  • Outside Dimension (in.): 61.5
  • Height (in.): 21.0
  • Depth (in.): 33.0
  • Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 406
  • Heaped Capacity (cu. ft.): 16.0
  • Wear-bars (1/2” x 3”): 2
  • Dimple Plate: No
  • HD Package: N/A

• Model #: UT-66

  • Inside Dimension (in.): 66.0
  • Outside Dimension (in.): 67.5
  • Height (in.): 21.0
  • Depth (in.): 33.0
  • Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 431
  • Heaped Capacity (cu. ft.): 17.6
  • Wear-bars (1/2” x 3”): 2
  • Dimple Plate: No
  • HD Package: N/A

• Model #: UT-72

  • Inside Dimension (in.): 72.0
  • Outside Dimension (in.): 73.5
  • Height (in.): 21.0
  • Depth (in.): 33.0
  • Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 470
  • Heaped Capacity (cu. ft.): 19.3
  • Wear-bars (1/2” x 3”): 2
  • Dimple Plate: No
  • HD Package: N/A

• Model #: UT-78

  • Inside Dimension (in.): 78.0
  • Outside Dimension (in.): 79.5
  • Height (in.): 21.0
  • Depth (in.): 33.0
  • Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 505
  • Heaped Capacity (cu. ft.): 20.9
  • Wear-bars (1/2” x 3”): 2
  • Dimple Plate: No
  • HD Package: N/A
