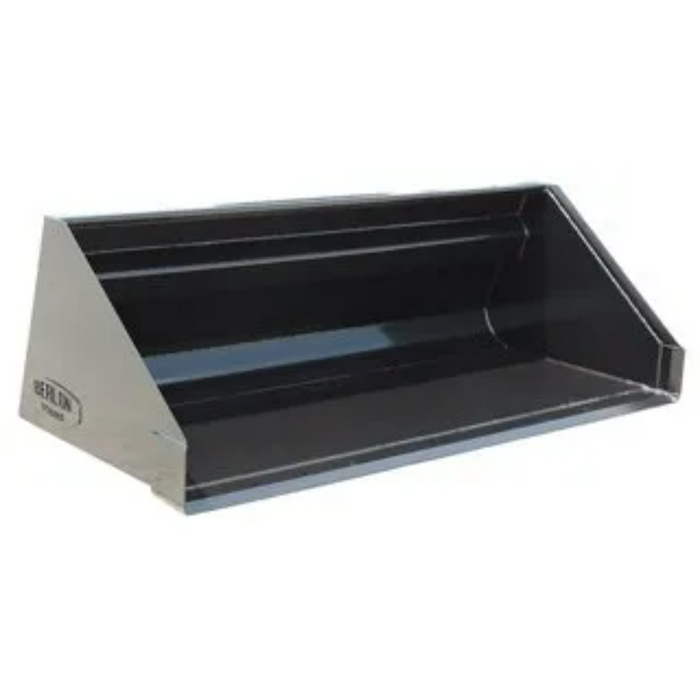

Berlon | Utility High-Back Bucket | UTHB Series | Skid Steer Bucket

Experience enhanced capacity and versatility with Berlon’s Utility High-Back Bucket. Designed to meet the demands of heavy-duty tasks, this bucket is your go-to solution when you need extra space and strength.

Upgrade your equipment arsenal with Berlon’s Utility High-Back Bucket and experience unmatched capacity, durability, and performance. Get the job done efficiently and effectively every time with Berlon.

Common Uses:

• Manure handling
• Slurry transport
• Moving bulky materials

**Includes MPUF-1 Universal Mounting plate. HD Package* Includes MPUF-1HD Universal mounting plate and double reinforcement kit.
Recommended for track machines and others over 75HP.

Features

1. High-Back Design: The unique high-back design of this bucket provides additional capacity, allowing you to tackle larger loads with ease. Whether you're dealing with manure, slurry, or bulky materials, this bucket has you covered.

2. Durability and Reliability: Built with durability in mind, Berlon's Utility High-Back Bucket is constructed from high-quality materials and engineered to withstand the toughest conditions. You can trust it to perform reliably day in and day out.

3. Versatile Applications: From agricultural operations to construction sites, this bucket excels in a variety of applications. Its versatility makes it an indispensable tool for handling a wide range of materials.

Specifications

• 3/16” thick steel body
• 3/4” x 6” weld-on cutting edge with holes
• Radius kick-out plate for added strength and easy clean-out
• Reinforcement tube across back of bucket for added strength

• Model #: UTHB-60

  • Inside Dimension (in.): 60.0
  • Outside Dimension (in.): 61.5
  • “A” Height (in.): 25.0
  • “B” Depth (in.): 36.0
  • “C” Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 462
  • Heaped Capacity (cu. ft.): 21.9
  • Wear-bars (1/2” x 3”): 3
  • Dimple Plate: No
  • HD Package: Optional

• Model #: UTHB-66

  • Inside Dimension (in.): 66.0
  • Outside Dimension (in.): 67.5
  • “A” Height (in.): 25.0
  • “B” Depth (in.): 36.0
  • “C” Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 498
  • Heaped Capacity (cu. ft.): 24.1
  • Wear-bars (1/2” x 3”): 3
  • Dimple Plate: No
  • HD Package: Optional

• Model #: UTHB-72

  • Inside Dimension (in.): 72.0
  • Outside Dimension (in.): 73.5
  • “A” Height (in.): 25.0
  • “B” Depth (in.): 36.0
  • “C” Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 532
  • Heaped Capacity (cu. ft.): 26.3
  • Wear-bars (1/2” x 3”): 3
  • Dimple Plate: No
  • HD Package: Optional

• Model #: UTHB-78

  • Inside Dimension (in.): 78.0
  • Outside Dimension (in.): 79.5
  • “A” Height (in.): 25.0
  • “B” Depth (in.): 36.0
  • “C” Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 579
  • Heaped Capacity (cu. ft.): 28.4
  • Wear-bars (1/2” x 3”): 3
  • Dimple Plate: No
  • HD Package: Optional

• Model #: UTHB-84

  • Inside Dimension (in.): 84.0
  • Outside Dimension (in.): 85.5
  • “A” Height (in.): 25.0
  • “B” Depth (in.): 36.0
  • “C” Angle (deg.): 70 Degree angle; other angles available
  • Weight (lbs.): 611
  • Heaped Capacity (cu. ft.): 30.6
  • Wear-bars (1/2” x 3”): 3
  • Dimple Plate: No
  • HD Package: Optional
