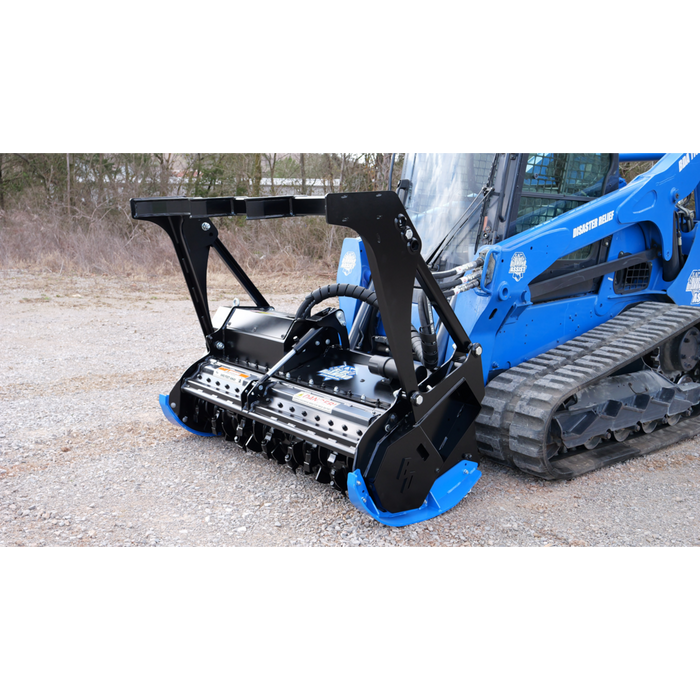

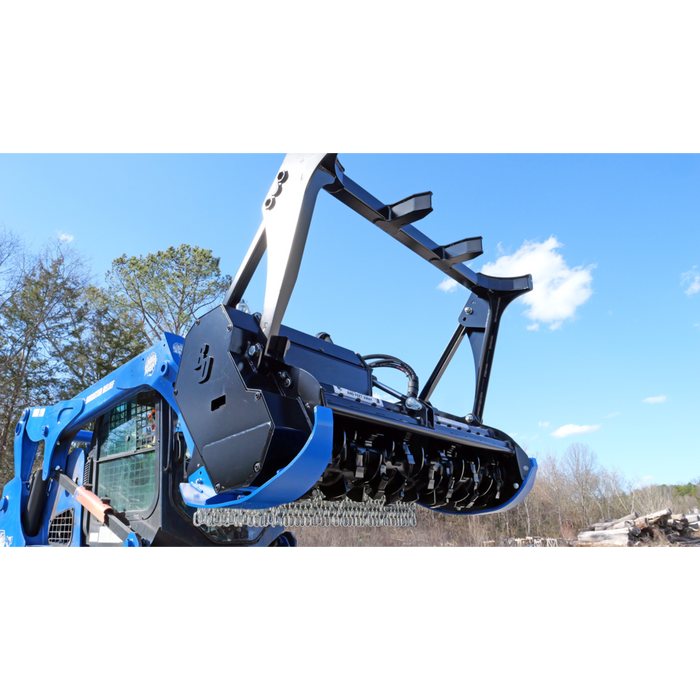

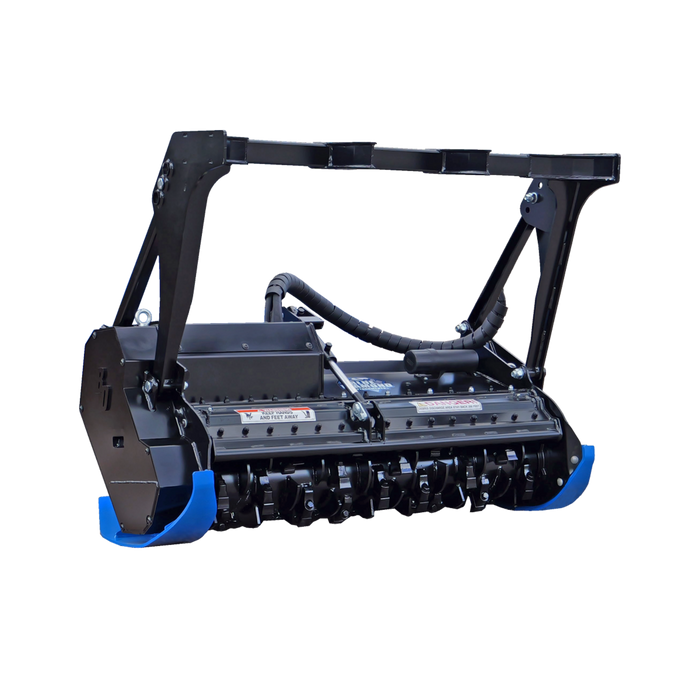

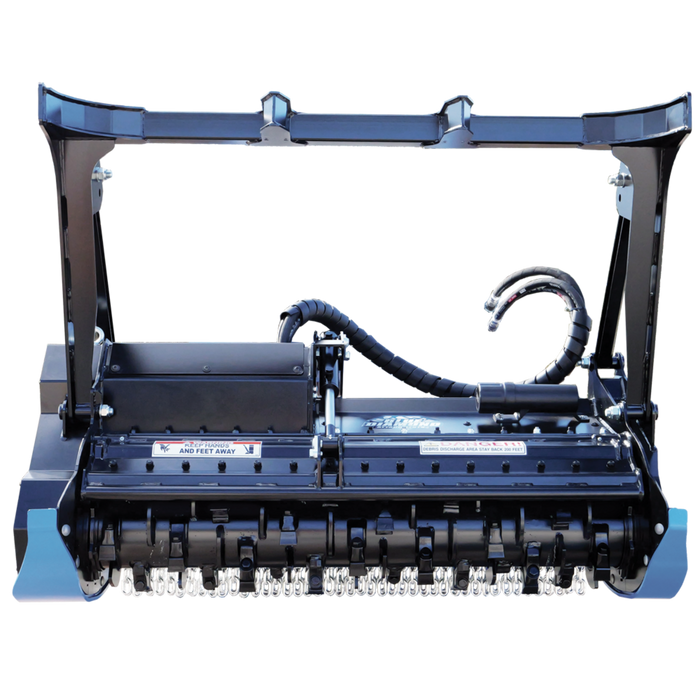

The Blue Diamond Heavy Duty Drum Mulcher is built to tackle the toughest mulching and brush clearing jobs. Compatible with a wide range of skid steers and compact track loaders, the Heavy Duty model features a 60" drum and requires only 22-46 GPM hydraulic flow for optimal performance. Perfect for applications in forestry, land clearing & property development, this skid steer mulcher attachment is a cut above the competition!

Features

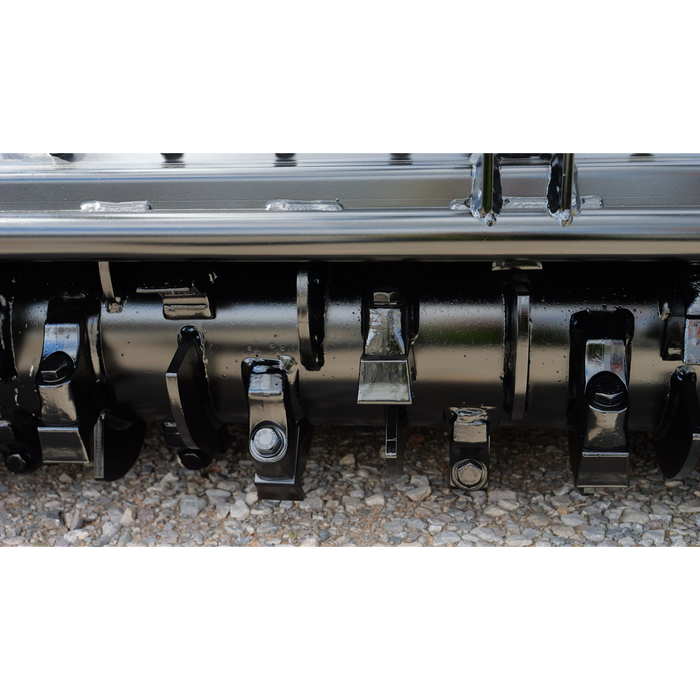

• 60” drum with carbide or reversible chipping teeth
• Hydraulic gate comes standard
• 3-line or 5-line hydraulic options available
• 1/2” or 3/4” coupler options
• Body built of high strength steel
• Adjustable push bar

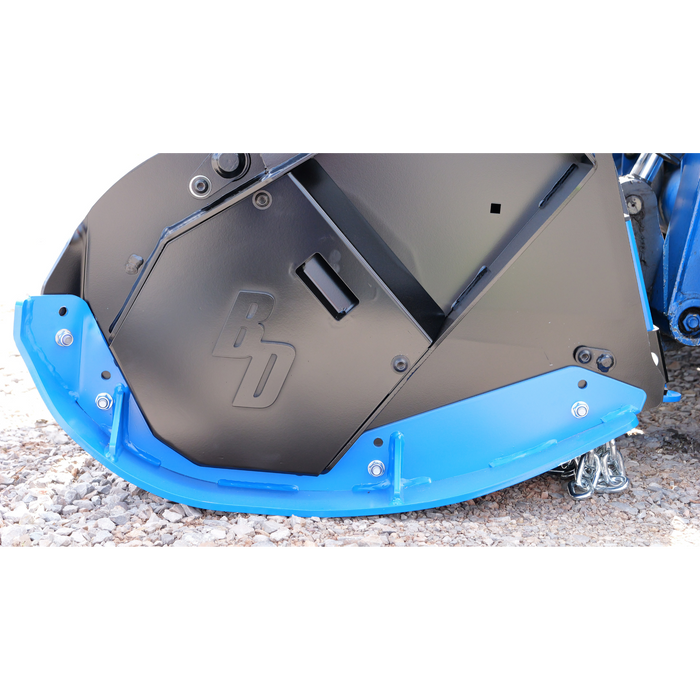

• Adjustable depth skid shoes

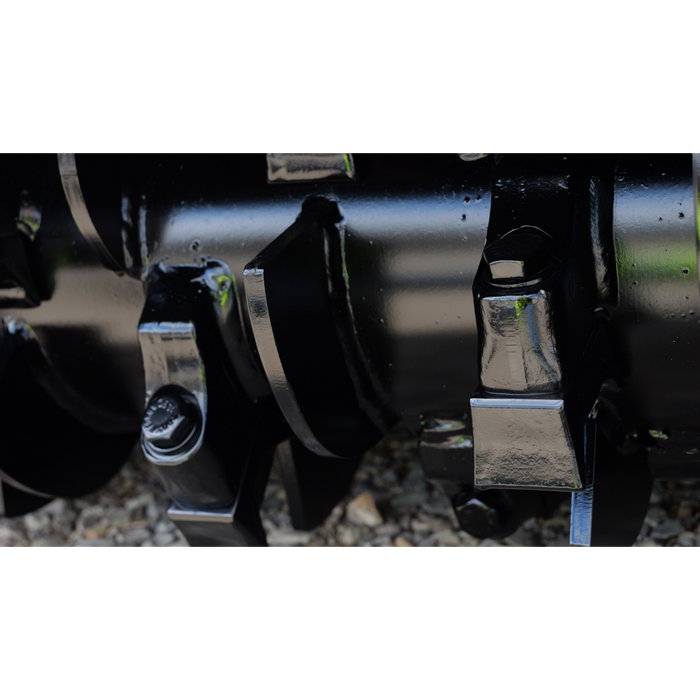

• Rotor with replaceable shafts and with fixed teeth in helical position with “P-CUT” bite limiters
• Polychain carbon fiber drive belts
• Side extension device between motor and pulleys with ESB system
• Hydraulic piston motor with variable displacement up to 85CC with built-in anticavitation valve
• 22-46 GPM hydraulic flow required

Specifications

Part Number: 390100
Model: 60” with Chipping Teeth, 3-line
Coupler: 1/2"
Weight: 2,105 lbs

Part Number: 390101
Model: 60” with Carbide Teeth, 3-line
Coupler: 1/2"
Weight: 2,105 lbs

Part Number: 390102
Model: 60” with Chipping Teeth, 5-line
Coupler: 1/2"
Weight: 2,105 lbs

Part Number: 390103
Model: 60” with Carbide Teeth, 5-line
Coupler: 1/2"
Weight: 2,105 lbs

Part Number: 390104
Model: 60” with Chipping Teeth, 3-line
Coupler: 3/4"
Weight: 2,105 lbs

Part Number: 390105
Model: 60” with Carbide Teeth, 3-line
Coupler: 3/4"
Weight: 2,105 lbs

Part Number: 390106
Model: 60” with Chipping Teeth, 5-line
Coupler: 3/4"
Weight: 2,105 lbs

Part Number: 390107
Model: 60” with Carbide Teeth, 5-line
Coupler: 3/4"
Weight: 2,105 lbs
