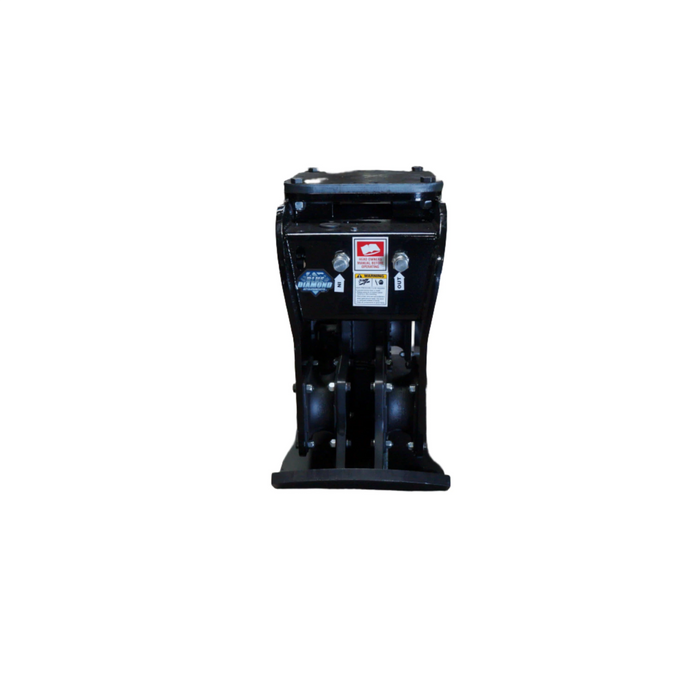

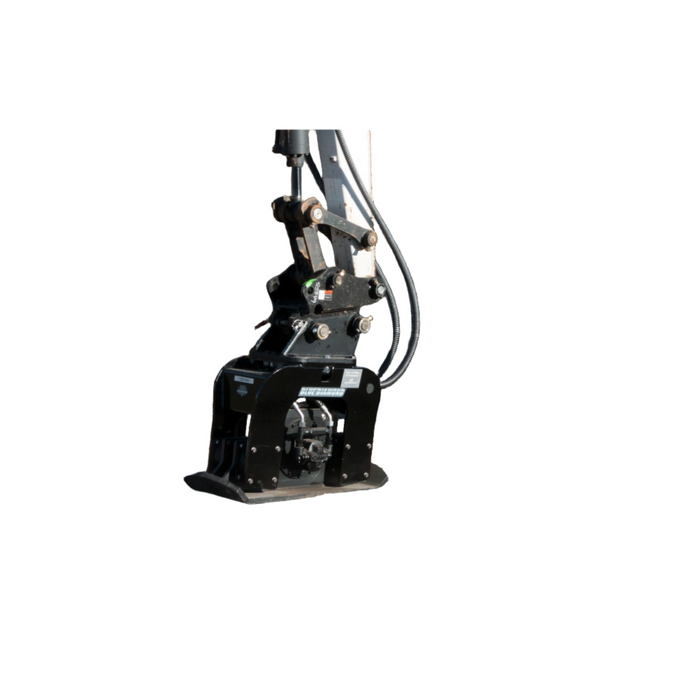

Blue Diamond | Excavator Plate Compactor | Excavator Attachments
In Stock & Ready To Ship
All orders shipped within 1-2 business days. Product ETA 5-7 business days. FREE SHIPPING IN THE CONTIGUOUS U.S.
Contact us for international shipping options support@constructiontoolsdirect.com
Discover the versatile Blue Diamond® Plate Compactor, compatible with excavators, backhoes, skid steers, and mini machines. Featuring industry-leading technology, it effectively minimizes machine vibrations while delivering exceptional compaction performance.
**Low vibration and noise, same widths as standard trenching buckets, high pressure cutoff valve to protect motor. Hoses & couplers will be included with purchase. Requires blank back mount, Not included - Hoses provided may be longer/shorter than needed and may require modification by
customer
Features
- Advanced technology for low vibration and noise
- Same width as standard trenching buckets
- High pressure cutoff valve to protect the motor
- 35 Hz frequency
Specifications
-
Model: C310 Plate Compactor
- Max Oil Flow: 13 GPM
- Max PSI: 2610
- Weight: 552 lbs
- Length: 24"
- Power: 5,000-12,000 FT.LBS/Kn
-
Model: C410 Plate Compactor
- Max Oil Flow: 23 GPM
- Max PSI: 2610
- Weight: 880 lbs
- Length: 32"
- Power: 12,000-22,000 FT.LBS/Kn
-
Model: C610 Plate Compactor
- Max Oil Flow: 37 GPM
- Max PSI: 2610
- Weight: 2,000 lbs
- Length: 48"
- Power: 24,000-42,000 FT.LBS/Kn
