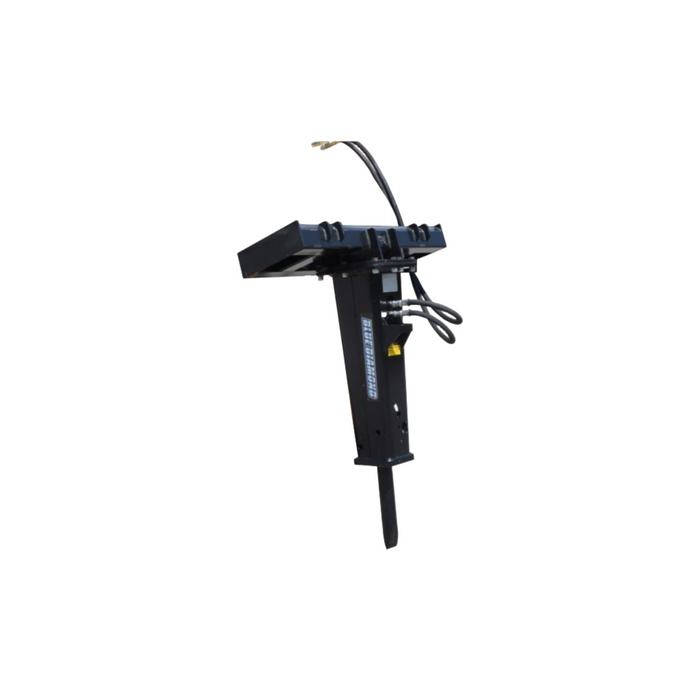

Blue Diamond | Hydraulic Breaker Skid Steer Attachment

Experience unparalleled performance with the Blue Diamond® Hydraulic Breaker, the pinnacle of innovation and reliability in demolition technology. After 5 years of dedicated development, we've crafted a hydraulic breaker for skid steers that combines cutting-edge design with simplicity, ensuring minimal downtime and maximum productivity. Whether you're tackling demolition, construction, or quarry projects, trust in our breaker's advanced technology, straightforward setup, and robust service support to deliver exceptional results. Elevate your operations with the Blue Diamond® Hydraulic Breaker today.

*****Specify breaker. Note: Universal hose length may not fit all machines. Customer is responsible for any hose modifications. 3 year warranty, monoblock design, self-regulated flow and pressure. *Operating weight does not include any mount used. **Mount Suffixes: (no suffix) – Skid Steer, “-EX” – Excavator, “-25” Mini Universal, “-26” Bobcat MT, “-35”
Avant, “-36” – ASV

Features

• 3-year warranty
• Mono-block design / no tie rods
• Anti-blank firing system hydraulic brake
• No re-gassing needed
• Only 2 internal moving parts
• 2 speed control / variable stroke
• Quiet operation
• Self-regulating
• Body bushings around piston

Specifications

HB95

• Working Pressure: 1,750 PSI
• Max Oil Flow: 11 GPM
• Frequency: 1,200 BPM
• Operating Weight: 220 LBS
• Tool Diameter: 1.8"
• Energy Class: 200
• Carrier Weight: 2,650-4,000 LBS
• Back Pressure: 290-360 PSI

HB165

• Working Pressure: 1,750 PSI
• Max Oil Flow: 13 GPM
• Frequency: 1,200 BPM
• Operating Weight: 370 LBS
• Tool Diameter: 2.2"
• Energy Class: 400
• Carrier Weight: 4,000-6,600 LBS
• Back Pressure: 290-360 PSI

HB210

• Working Pressure: 1,750 PSI
• Max Oil Flow: 16 GPM
• Frequency: 1,100 BPM
• Operating Weight: 463 LBS
• Tool Diameter: 2.5"
• Energy Class: 500
• Carrier Weight: 6,100-9,900 LBS
• Back Pressure: 290-360 PSI

HB300

• Working Pressure: 1,750 PSI
• Max Oil Flow: 21.2 GPM
• Frequency: 1,100 BPM
• Operating Weight: 661 LBS
• Tool Diameter: 2.9"
• Energy Class: 700
• Carrier Weight: 8,800-15,500 LBS
• Back Pressure: 290-360 PSI

HB400

• Working Pressure: 1,750 PSI
• Max Oil Flow: 29.2 GPM
• Frequency: 900 BPM
• Operating Weight: 882 LBS
• Tool Diameter: 3.1"
• Energy Class: 1,000
• Carrier Weight: 13,500-20,900 LBS
• Back Pressure: 363 PSI

HB530

• Working Pressure: 1,750 PSI
• Max Oil Flow: 32 GPM
• Frequency: 900 BPM
• Operating Weight: 1,169 LBS
• Tool Diameter: 3.3"
• Energy Class: 1,200
• Carrier Weight: 17,650-25,350 LBS
• Back Pressure: 363 PSI
