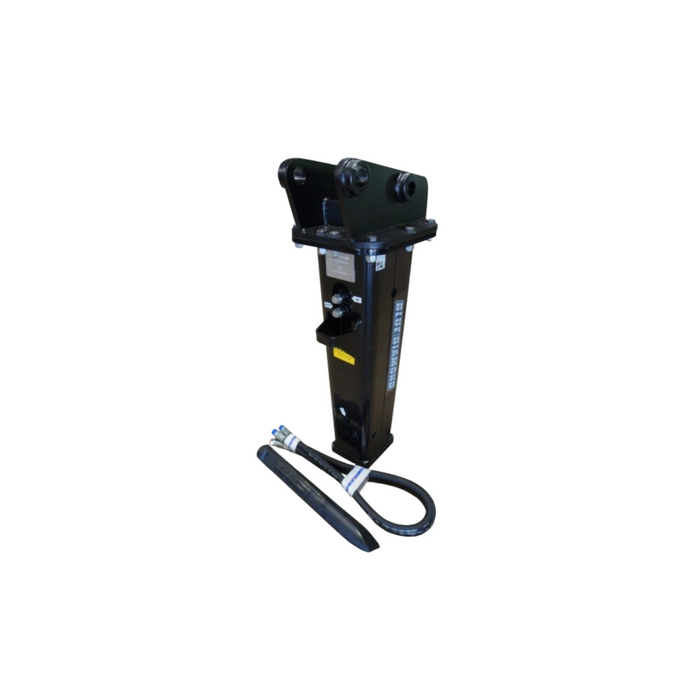

Blue Diamond | Hydraulic Excavator Breaker | Excavator Attachments

Discover the pinnacle of excellence with our Hydraulic Breaker from Blue Diamond®. After an extensive 5-year endeavor, we've perfected a superior solution for excavators. This state-of-the-art "hammer" combines advanced technology, unmatched reliability, and effortless setup, ensuring minimal downtime and comprehensive service support. Ideal for demolition, construction, and quarry projects, experience unmatched performance and reliability today.

***Requires blank mount, Not Included – Specify which breaker. Note: Universal hose length may not fit all machines. Customer is responsible for any hose modifications. *Operating weight does not include any mount used.

Features

• 3-year warranty
• Mono-block design / no tie rods
• Anti-blank firing system hydraulic brake
• No re-gassing needed
• Only 2 internal moving parts
• 2 speed control / variable stroke
• Quiet operation
• Self-regulating
• Body bushings around piston

Specifications

• Part Number: 135005

  • Model: HB50
  • Working Pressure: 1,750 PSI
  • Max Oil Flow: 7 GPM
  • Frequency (BPM): 1,200
  • Operating Weight: 132 lbs
  • Tool Diameter: 1.5 inches
  • Energy Class: 100
  • Carrier Weight: 1,500-2,650 lbs
  • Back Pressure (PSI): 290-360

• Part Number: 135009

  • Model: HB95
  • Working Pressure: 1,750 PSI
  • Max Oil Flow: 11 GPM
  • Frequency (BPM): 1,200
  • Operating Weight: 220 lbs
  • Tool Diameter: 1.8 inches
  • Energy Class: 200
  • Carrier Weight: 2,650-4,000 lbs
  • Back Pressure (PSI): 290-360

• Part Number: 135016

  • Model: HB165
  • Working Pressure: 1,750 PSI
  • Max Oil Flow: 13 GPM
  • Frequency (BPM): 1,200
  • Operating Weight: 370 lbs
  • Tool Diameter: 2.2 inches
  • Energy Class: 400
  • Carrier Weight: 4,000-6,600 lbs
  • Back Pressure (PSI): 290-360

• Part Number: 135021

  • Model: HB210
  • Working Pressure: 1,750 PSI
  • Max Oil Flow: 16 GPM
  • Frequency (BPM): 1,100
  • Operating Weight: 463 lbs
  • Tool Diameter: 2.5 inches
  • Energy Class: 500
  • Carrier Weight: 6,100-9,900 lbs
  • Back Pressure (PSI): 290-360

• Part Number: 135030

  • Model: HB300
  • Working Pressure: 1,750 PSI
  • Max Oil Flow: 21.2 GPM
  • Frequency (BPM): 1,100
  • Operating Weight: 661 lbs
  • Tool Diameter: 2.9 inches
  • Energy Class: 700
  • Carrier Weight: 8,800-15,500 lbs
  • Back Pressure (PSI): 290-360

• Part Number: 135040

  • Model: HB400
  • Working Pressure: 1,750 PSI
  • Max Oil Flow: 29.2 GPM
  • Frequency (BPM): 900
  • Operating Weight: 882 lbs
  • Tool Diameter: 3.1 inches
  • Energy Class: 1,000
  • Carrier Weight: 13,500-20,900 lbs
  • Back Pressure (PSI): 363

• Part Number: 135053

  • Model: HB530
  • Working Pressure: 1,750 PSI
  • Max Oil Flow: 32 GPM
  • Frequency (BPM): 900
  • Operating Weight: 1,169 lbs
  • Tool Diameter: 3.3 inches
  • Energy Class: 1,200
  • Carrier Weight: 17,650-25,350 lbs
  • Back Pressure (PSI): 363

• Part Number: 135095

  • Model: HB950
  • Working Pressure: 1,950 PSI
  • Max Oil Flow: 34 GPM
  • Frequency (BPM): 900
  • Operating Weight: 2,161 lbs
  • Tool Diameter: 4 inches
  • Energy Class: 2,000
  • Carrier Weight: 22,000-33,000 lbs
  • Back Pressure (PSI): 363

• Part Number: 135098

  • Model: HB1400
  • Working Pressure: 2,050 PSI
  • Max Oil Flow: 37 GPM
  • Frequency (BPM): 600-800
  • Operating Weight: 2,976 lbs
  • Tool Diameter: 4.6 inches
  • Energy Class: 3,000
  • Carrier Weight: 30,000-50,000 lbs
  • Back Pressure (PSI): 145

• Part Number: 135100

  • Model: HB1800
  • Working Pressure: 2,050 PSI
  • Max Oil Flow: 53 GPM
  • Frequency (BPM): 490-630
  • Operating Weight: 3,968 lbs
  • Tool Diameter: 5.4 inches
  • Energy Class: 4,000
  • Carrier Weight: 48,000-70,000 lbs
  • Back Pressure (PSI): 145

• Part Number: 135105

  • Model: HB2500
  • Working Pressure: 2,200 PSI
  • Max Oil Flow: 61 GPM
  • Frequency (BPM): 460-630
  • Operating Weight: 5,291 lbs
  • Tool Diameter: 6 inches
  • Energy Class: 5,000
  • Carrier Weight: 60,000-80,000 lbs
  • Back Pressure (PSI): 145

• Part Number: 135110

  • Model: HB3000
  • Working Pressure: 2,350 PSI
  • Max Oil Flow: 75 GPM
  • Frequency (BPM): 380-500
  • Operating Weight: 6,614 lbs
  • Tool Diameter: 6.5 inches
  • Energy Class: 7,000
  • Carrier Weight: 70,000-110,000 lbs
  • Back Pressure (PSI): 145
