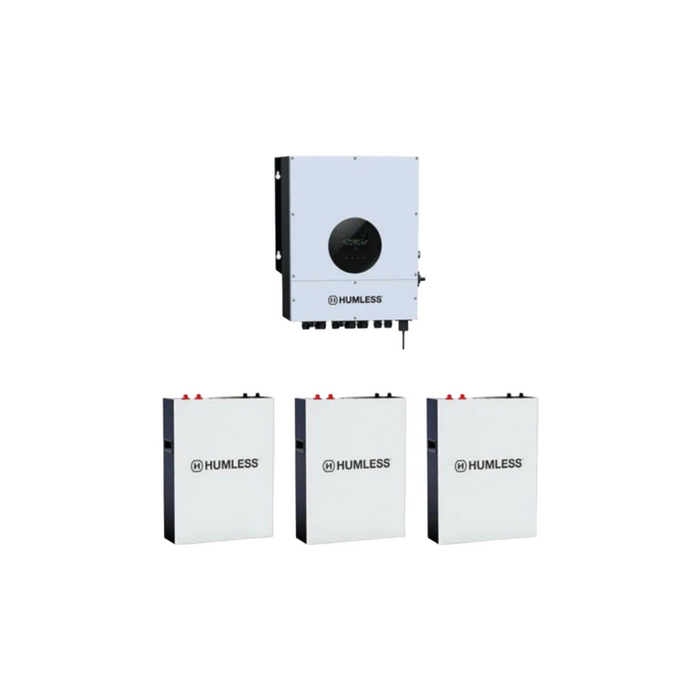

Humless IP65 5kWh Battery With 6kW Universal Inverter Kits
In Stock & Ready To Ship
All orders shipped within 1-2 business days. Product ETA 5-7 business days. FREE SHIPPING IN THE CONTIGUOUS U.S.
Contact us for international shipping options support@constructiontoolsdirect.com
Humless IP65 5kWh Battery With 6kW Universal Inverter Kits
Highlights:
NOW SGS NA listed to UL 9540 and ETL listed to UL 1741!
Discover a new and exciting home battery backup solution suitable for both grid-tied and off-grid living.
The 6kW Universal Inverter is a versatile grid-tied or off-grid solution in our Universal series. It can be installed independently as a grid-tied net-metering inverter, with provisions for adding batteries (stored energy) in the future.
Another popular option is the IP65 Battery 6kW Universal package, featuring 15kWh of lithium battery storage, a 6kW premium inverter, remote monitoring, and stackable design. This expandable system can grow into a larger energy storage solution over time, offering sufficient power to safeguard the essential loads of an average residential home during utility/grid failure.
When paired with solar and/or a generator, the hybrid solar system ensures a nearly limitless power supply for enhanced energy independence and family security. The 6kW Universal inverter supports up to 7.5kW of PV solar power through its dual MPPT solar chargers, and integrates a 240V generator input with a 2-wire auto start feature.
Advantages of Lithium-Iron Batteries:
- Lithium itself is non-toxic and does not bio-accumulate like lead or other heavy metals.
- A 2013 EPA report highlighted the environmental impact of Li-based batteries using nickel or cobalt, emphasizing resource depletion and ecological toxicity.
- Lithium-iron batteries are sealed with no off-gassing and require minimal maintenance.
LiFePO4 batteries offer significant advantages over other lithium chemistries:
- They use common materials like copper, iron, and graphite, avoiding rare earths or toxic metals.
- Less energy is consumed in mining and processing.
- Phosphate salts are less soluble, reducing environmental risks.
- LiFePO4 batteries are chemically stable against combustion and rupture.
Enhance your solar system with one of the safest and highest-cycle battery chemistries available!
Specifications
Battery Specs
- SKU: BATUNI20/6
- BATTERY: Lithium-Iron (LFP) - 20 kWh
- CYCLES: 4000+
- STACKABLE: 6k Inverter stackable up to 6 units (up to 36 kW of output)
- WEIGHT: 600 lbs
- OUTPUT: 6000 W (Surges to 12,000 W)
- GRID TIED: 6k Inverter can be installed as a grid tied inverter with or without batteries
- CERTIFICATIONS: SGS NA listed to UL 9540 and ETL listed to UL 1741
- MPPT'S: (2) MPPT's for PV solar arrays up to 7.5 kW
Inverter Specs
This multifunctional 6kW inverter offers a versatile set of features:
- Operation Modes: Works as a grid-tied string inverter without batteries or as a battery-based inverter with hybrid capabilities.
- AC Coupled Function: Built-in AC coupled function specifically for PV solar inverters.
- Output Power: Provides 6,000 W continuous output power with a pure sine wave at 120/240 Vac.
- Monitoring: Built-in WiFi enables mobile monitoring through an available app.
- Generator Compatibility: Includes an alternative port for generator connection with automatic two-wire start.
- Self-Consumption: Equipped with a CT sensor to ensure 100% self-consumption.
- Dual Power Source: Accepts a second input power source, compatible with generator input.
- Charging Control: User-adjustable charging current and voltage settings.
- Scalability: Supports parallel operation of up to 6 units.
- Certifications: UL 1741 certified for Inverters, Controllers, and Interconnection Systems.
Equipment for use with Distributed Energy Resources
