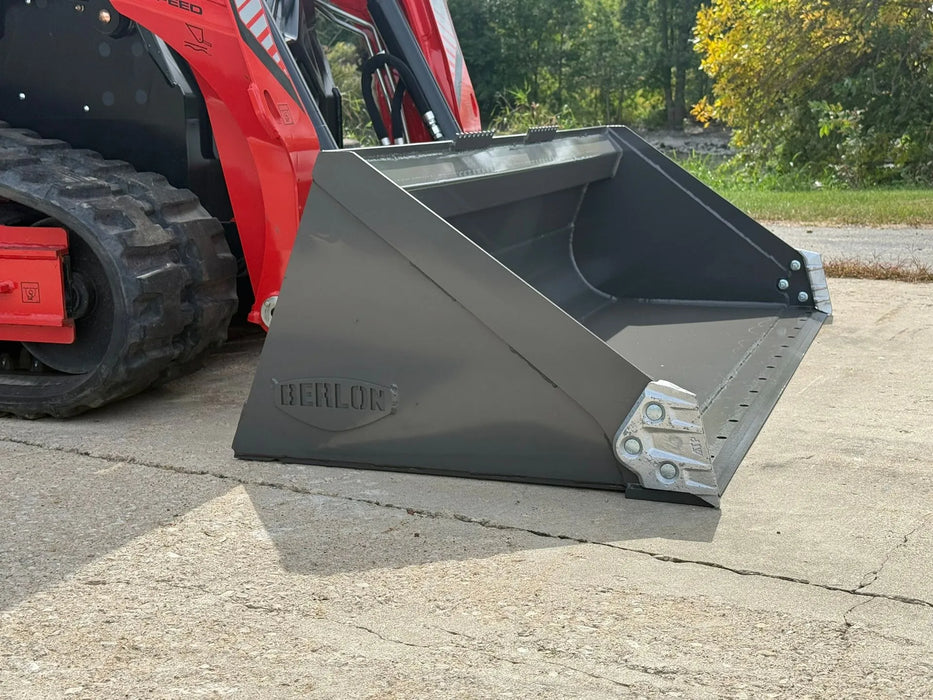

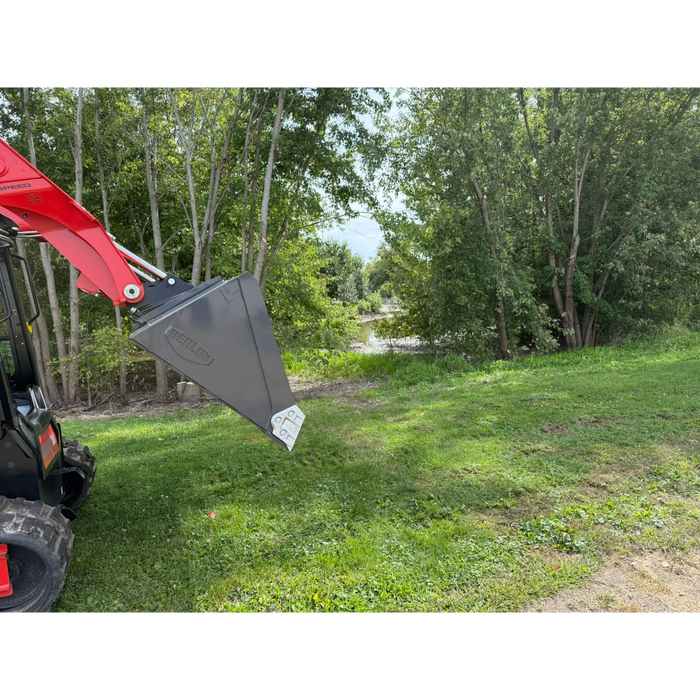

Heavy Duty Grading Bucket, Tough, precise, and built to last. Reinforced with wear plates and bottom wear bars, this bucket is ready for the heaviest grading jobs. The extended lip profile gives operators better visibility to the cutting edge for smooth, accurate back dragging. A universal skid steer mount makes it easy to hook up and get to work.

Features

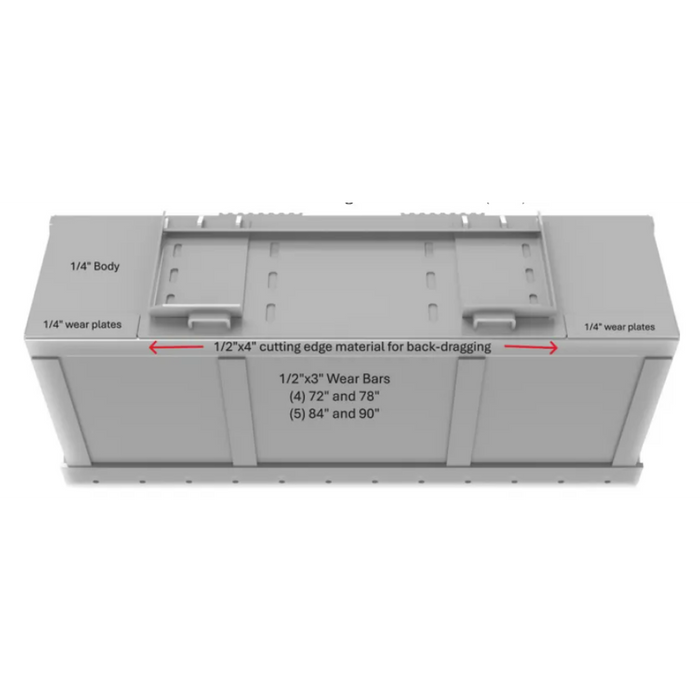

• Reinforced cutting edge material for long-lasting performance
• Heavy-duty wear plates for added durability

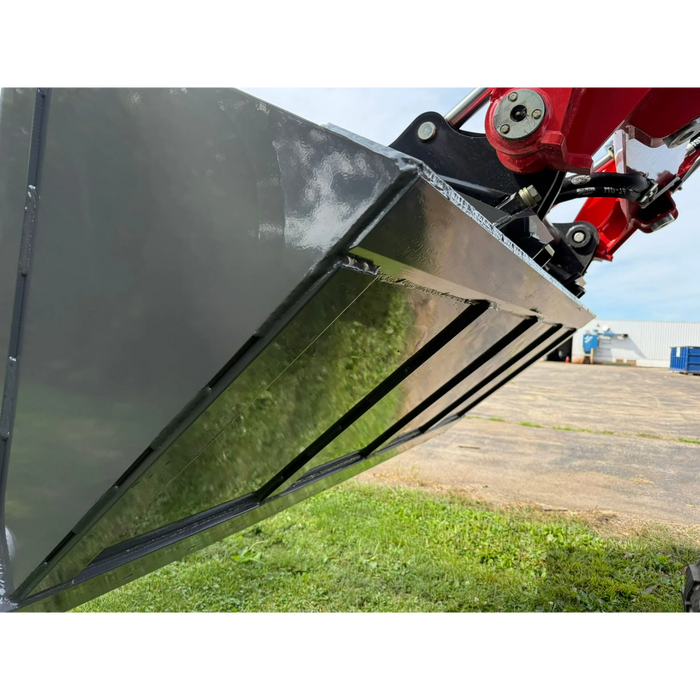

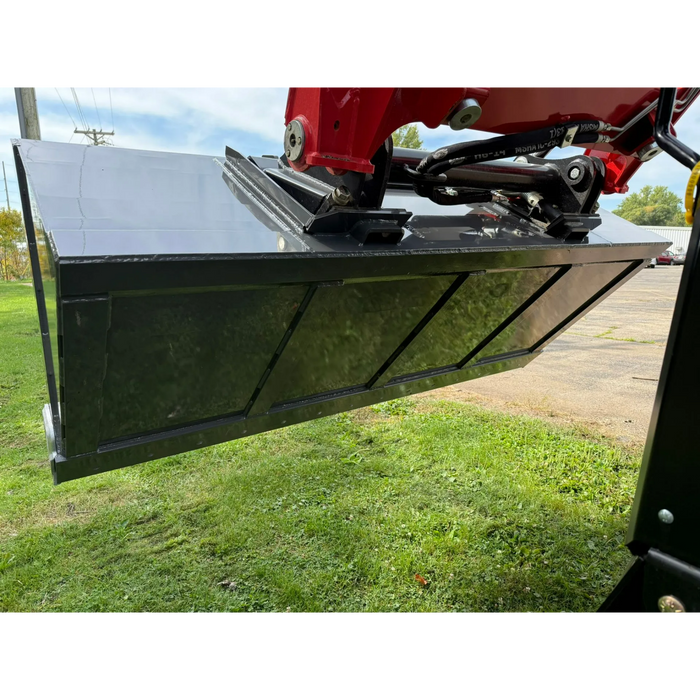

• Wear bars along the bottom to extend bucket life
• Universal skid steer mount for quick and easy attachment

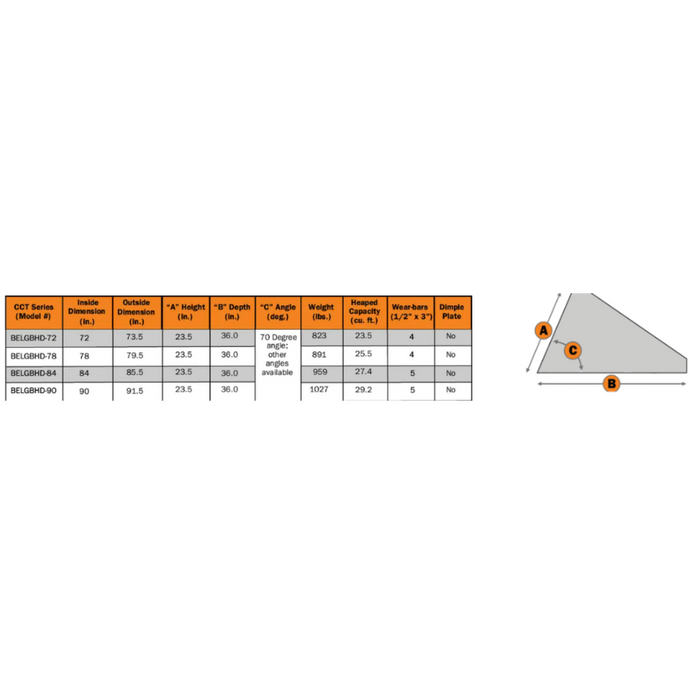

Specifications

• BELGBHD-72

  • Inside Dimension: 72 in.

  • Outside Dimension: 73.5 in.

  • Height (A): 23.5 in.

  • Depth (B): 36.0 in.

  • Angle (C): 70° (other angles available)

  • Weight: 823 lbs.

  • Heaped Capacity: 23.5 cu. ft.

  • Wear Bars (1/2" x 3"): 4

  • Dimple Plate: No

• BELGBHD-78

  • Inside Dimension: 78 in.

  • Outside Dimension: 79.5 in.

  • Height (A): 23.5 in.

  • Depth (B): 36.0 in.

  • Angle (C): 70° (other angles available)

  • Weight: 891 lbs.

  • Heaped Capacity: 25.5 cu. ft.

  • Wear Bars (1/2" x 3"): 4

  • Dimple Plate: No

• BELGBHD-84

  • Inside Dimension: 84 in.

  • Outside Dimension: 85.5 in.

  • Height (A): 23.5 in.

  • Depth (B): 36.0 in.

  • Angle (C): 70° (other angles available)

  • Weight: 959 lbs.

  • Heaped Capacity: 27.4 cu. ft.

  • Wear Bars (1/2" x 3"): 5

  • Dimple Plate: No

• BELGBHD-90

  • Inside Dimension: 90 in.

  • Outside Dimension: 91.5 in.

  • Height (A): 23.5 in.

  • Depth (B): 36.0 in.

  • Angle (C): 70° (other angles available)

  • Weight: 1,027 lbs.

  • Heaped Capacity: 29.2 cu. ft.

  • Wear Bars (1/2" x 3"): 5

  • Dimple Plate: No

Available Options & Upgrades- Contact Us

Enhance the performance and versatility of your Heavy-Duty Grading Bucket with these factory-installed or bolt-on options:

• Bolt-On Cutting Edge – Extend the life of your bucket while ensuring a clean cut every time.

• Bolt-On Rake Tooth Edge – Ideal for leveling, raking, and site prep applications.

• Spill Guard (Welded-On) – Reduces material loss and provides added capacity control.

• Bolt-On HD Teeth (Factory Installed Only) – Heavy-duty teeth designed for maximum digging power and durability.

• Bolt-On Tooth Bar – Quick and easy upgrade for improved digging efficiency.

• Bolt-On Tooth Bar (Over Bolt-On Edge) – Double reinforcement for the toughest ground conditions.

• Back Angle Modification – Adjust the back angle of the bucket for custom applications
