MechMaxx |1800lb | Stand-ON Hydraulic Track Dumper with Self-Loading | Tracked Buggy
In Stock & Ready To Ship
All orders shipped within 1-2 business days. Product ETA 5-7 business days. FREE SHIPPING IN THE CONTIGUOUS U.S.
Contact us for international shipping options support@constructiontoolsdirect.com

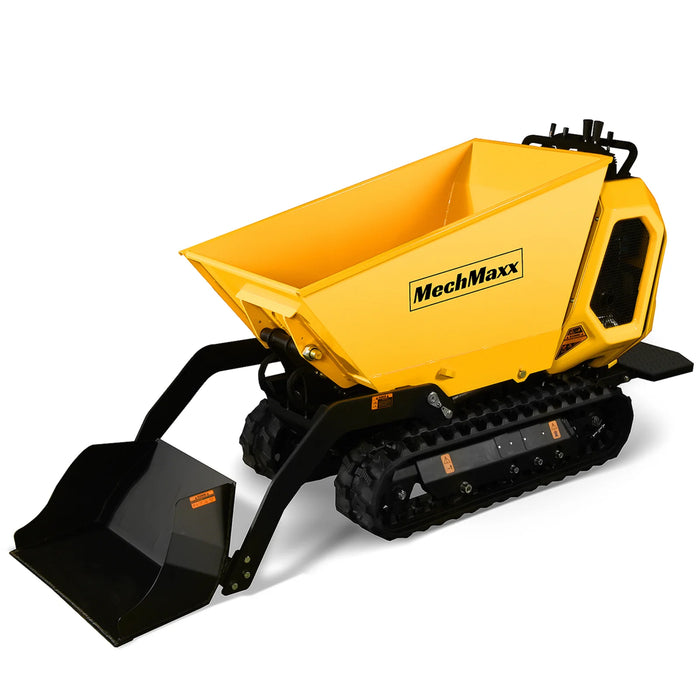

Introducing the MechMaxx T80 Two-Speed Machine, the ultimate solution for precision and efficiency on any job site. With dual-speed capabilities, low speed ensures precise operation, while a high speed of 4.4 km/h allows for rapid movement across the site. Powered by a robust 15hp gasoline engine, this machine delivers exceptional power, enhancing performance in both dumping and tracking tasks. Its compact 29-inch width enables easy access through standard doorways and gates. Boasting an impressive 1800 lbs loading capacity, the MechMaxx T80 features a fully hydraulic system with the exclusive BONDIOLI & PAVESI hydraulic control valve for T80. The triple gear pump offers 30% maximum gradeability and a peak torque of 26.5 Nm at 2500 rpm. Experience unmatched power, precision, and versatility with the MechMaxx T80 Two-Speed Machine.
Features
- Adjustable High and Low Speed T80 can travel at high and low speeds, Max. Travel Speed is 0-2.73 mph, and Min. Travel Speed is 0-1.37 mph.
-
Control Valve Imported From Italy High-quality control valves imported from Italy can extend the service life and effectively improve work efficiency.
-
Load 1800lbs The safe load capacity of the dump truck is 1800lb. The compact design can be used flexibly in small construction sites/farms/and yards
-
Engine The T80 is equipped with a 15hp 420cc electric start gasoline engine.
-
Handle There is an adjustable front shovel handle to save manpower. Adjustable dump handles help speed up handling.
-
Timer There is a timer at the control panel to meet customer needs to record the running time of the machine.
-
Electric Start The electric start key and damper switch of the gasoline engine are designed on the control panel, allowing for more intuitive operation.
-
The Hydraulic Oil Radiator The fully enclosed cabin design allows the operator to avoid noise during work. The hydraulic oil radiator and engine shaft end fan inside the cabin perfectly reduce the temperature of the console to within 104.0 °F.
-
Triple Gear Pump The hydraulic system design of the triple gear pump can make the vehicle more stable when the hydraulic system is working.
Specifications
- Engine: Loncin G420F(D)
- Engine type: Single cylinder, 4 stroke, air cooled, OHV
- Engine displacement: 420 cc
- Horsepower: 15 hp
- Engine power: 9.0 kw / 3600 rpm
- Start: E-start
- Maximum torque: 26.5 Nm / 2500 rpm
- Loading capacity: 1800 lbs
- Wheelbase: 39 in
- Bucket capacity: 10.6 cuft
- Track width: 7.09 in
- Track length: 51.2 in
- Track height: 11.8 in
- Shovel height: 63.8 in
- Dump front end height: 33.3 in
- Dump back end height: 43.3 in
- Dump width: 24.3 in
- Console height: 40.2 in
- Platform ground clearance: 10.4 in
- Working type: Self loading and unloading
- Transmission: Hydrostatic track drive system
- Parking brake: Yes
- Operator platform: Stand-on
- Max. travel speed: 0-2.73 mph
- Min. travel speed: 0-1.37 mph
- Max. gradeability: 0.3
- Ground pressure (with operator): 2.9 psi (20 KPa)
- Hydraulic pressure: 2900 psi (20 MPa)
- Hydraulic tank capacity: 6 gal
- Fuel tank capacity: 1.72 gal
- Battery capacity: 12V 20Ah
- Pump type: Triple gear pump
- Overall length (w/o shovel): 80 in
- Overall length with shovel: 108 in
- Overall height: 48 in
- Overall width: 29 in
- Weight (N.W/G.W): 1253/1385 lbs
