High-Efficiency Flail Mower Attachment: Ideal for Large Areas and Dense Debris

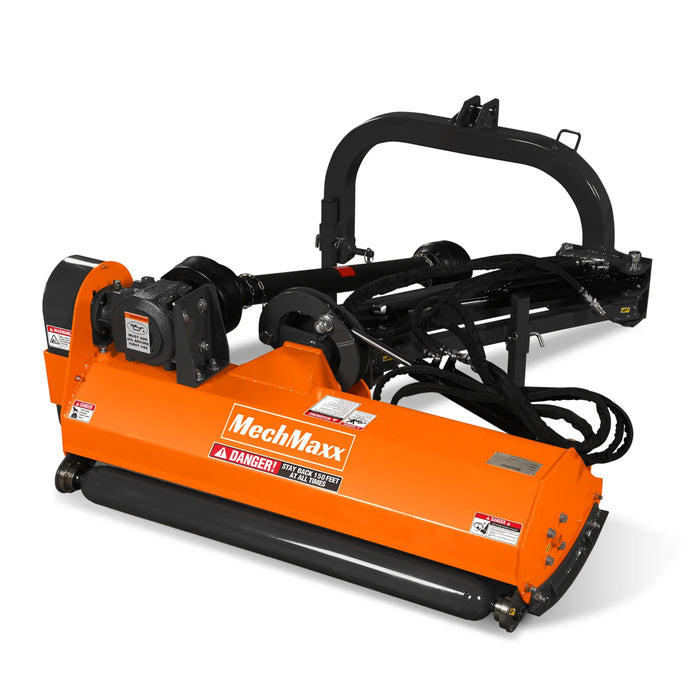

The MechMaxx VAM Series 3-point offset flail ditch bank mowers are available in four configurations designed for compatible tractors ranging from compact utility equipment to larger agricultural tractors.
Selecting the Right Flail Mower
The VAM48, VAM60, and VAM65 are designed for compatible Category 1 tractors, while the larger VAM72 requires a Category 2 hitch and higher tractor horsepower.
All four models feature offset mowing capability and hammer-style cutting blades for vegetation management, ditch banks, fence lines, slopes, and property maintenance.
Important: Verify your tractor's engine horsepower, PTO specifications, three-point hitch category, lifting capacity, and intended operating application before purchasing.
For assistance selecting the correct model, contact Construction Tools Direct at 904-671-3111.
Manufacturer-Direct Shipping | Knowledgeable Equipment Support | Nationwide Delivery
Maximize your efficiency with our High-Efficiency Flail Mower Attachment, designed to save time and economically cut plants over larger areas. This robust attachment is equipped with a flail hammer, allowing it to power through dense debris with ease, making it perfect for maintaining expansive landscapes.
- Efficient Cutting: Economically cuts plants over larger areas, saving you valuable time.
- Flail Hammer: Enhances the mower’s ability to tackle dense debris effortlessly.
- PTO Drive Shaft: Easily connects to your tractor for seamless operation.
- Belt Drive: Ensures efficient power transfer, maximizing performance.
- Offset Category 1, 3-Point Knot: Provides stability and ease of use.
- Tractor Compatibility: Recommended for 25-60 HP tractors, capable of handling material up to 1.5 inches in diameter.
- Safety and Durability: Front safety chains keep debris out, and sealed tapered roller bearings ensure longevity.
- Convenient Storage: Includes brackets for easy storage when not in use.
Ideal For:
- Large Area Maintenance: Perfect for efficiently cutting plants in larger areas.
- Dense Debris Management: Flail hammer helps push through thick, tough material.
- Tractor Integration: Easily connects to 25-60 HP tractors for versatile use.
- Safe and Durable: Safety chains and durable bearings ensure reliable operation.
Features
- 48 - 65 in working width for timesaving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards
- This mower can keep your mowing area as short as possible with 28 number of blades.
- Compatible with 25 - 60 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities
- Rotation Angle - Hydraulically controlled with 60°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities
- PTO shaft(1- 3/8’’ Z6) - Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-63'' with shear bolt ; 63''-77''
- Side Movement-Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.
Specifications
MechMaxx VAM Series — Tractor Compatibility & Model Comparison
| Model | Cutting Width | Required Tractor HP | Hitch Category | PTO Speed |
|---|---|---|---|---|
| VAM48 | 48" | 25–50 HP | Category 1 | 540 RPM |
| VAM60 | 60" | 25–60 HP | Category 1 | 540 RPM |
| VAM65 | 65" | 30–60 HP | Category 1 | 540 RPM |
| VAM72 | 72" | 70–100 HP | Category 2 | 540 RPM |
- Power Required: 25-60 hp
- Working Width: 48 - 65 in
- Overall Width: 56 - 72 in
- Blade Ground Clearance: 0.65 in-2 in
- Max. Cutting Diameter: 1.5 in
- Offset Distance from The Center (Maximum): 69 - 85 in
- Tilt-Up Angle: 90°
- Tilt-Down Angle: 60°
- Number Of Blades: 20 - 28
- Blade Type: Hammer
- Size of Blades: 3.5 x 3.2 x 1.6 in
- Blade Weight: 0.9 lbs
- Blade Material: Cast steel
- Rotor Bearing: SKF bearing
- Rotor Diameter: 4.3 in
- Blade Swing Diameter: 14 in
- Rotor Thickness: 0.3 in
- Rotor Shaft Speed: 2356 rpm
- Drive Type: Belt drive
- Number of Belts: 3
- Belt Size: V Belt 17 x 991
- Deck Thickness: 0.16 in
- Side Plate Thickness: 0.25 in
- PTO Shaft Speed: 540 rpm
- Driveline Shaft Length: T6-LF-63 with Shear Bolt; 63-77 in [05B-1600]
- Spline End: 1.375 in Z6
- 3-Point Hitch: CAT 1
- Gearbox Oil Type: 85W-90
- Dimensions (L x W x H): VAM48- 56 x 27.5 x 28in, VAM60- 64 x 27.5 x 28in, & VAM65- 72 x 27.5 x 28 in
- Finish: Powder coating
- Warranty: 1 year
- Weight (N.W./G.W.): VAM48- 613/723 lbs, VAM60- 657/772 lbs, & VAM65-701/820 lbs
