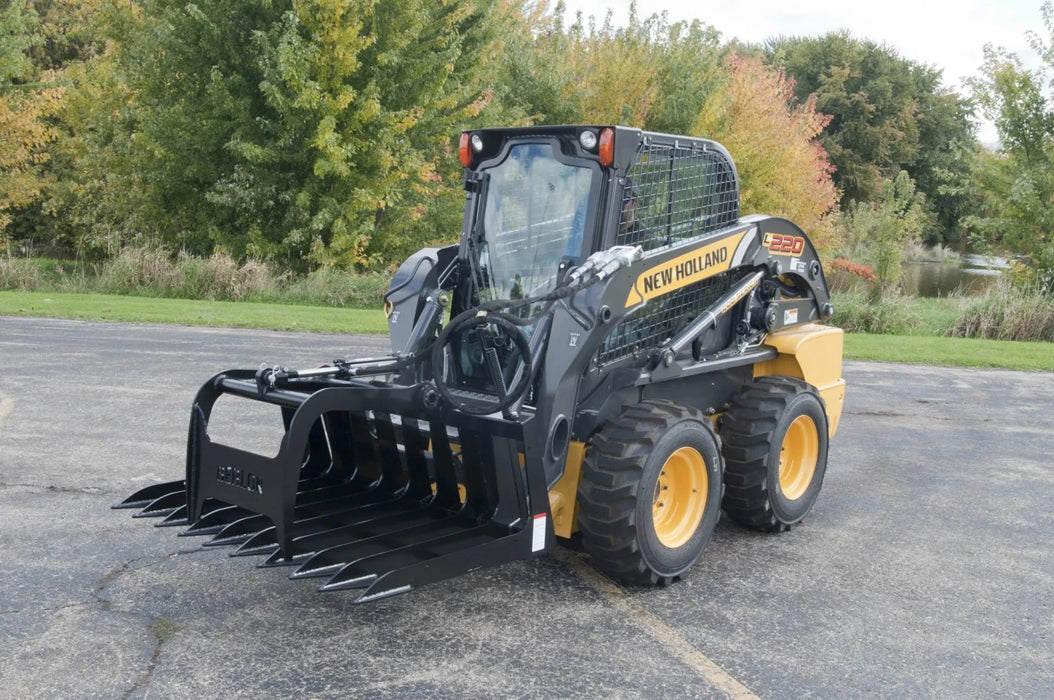

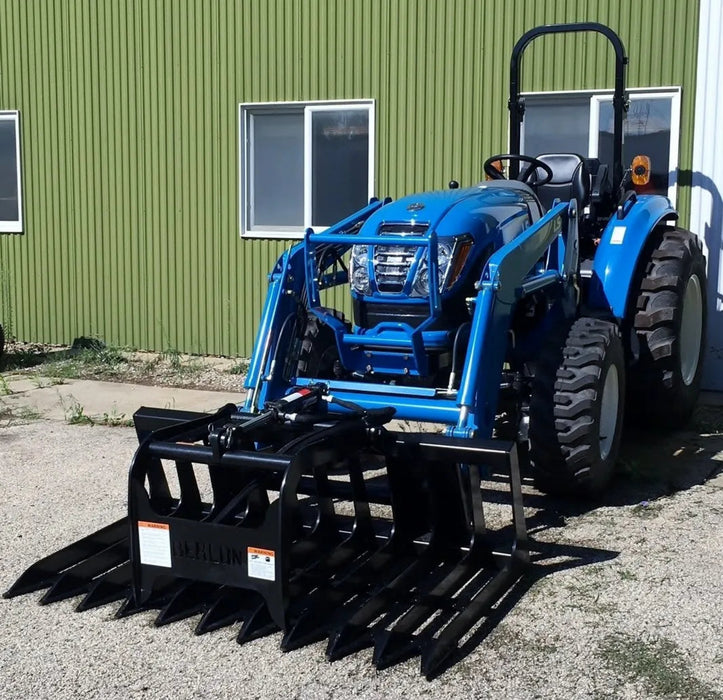

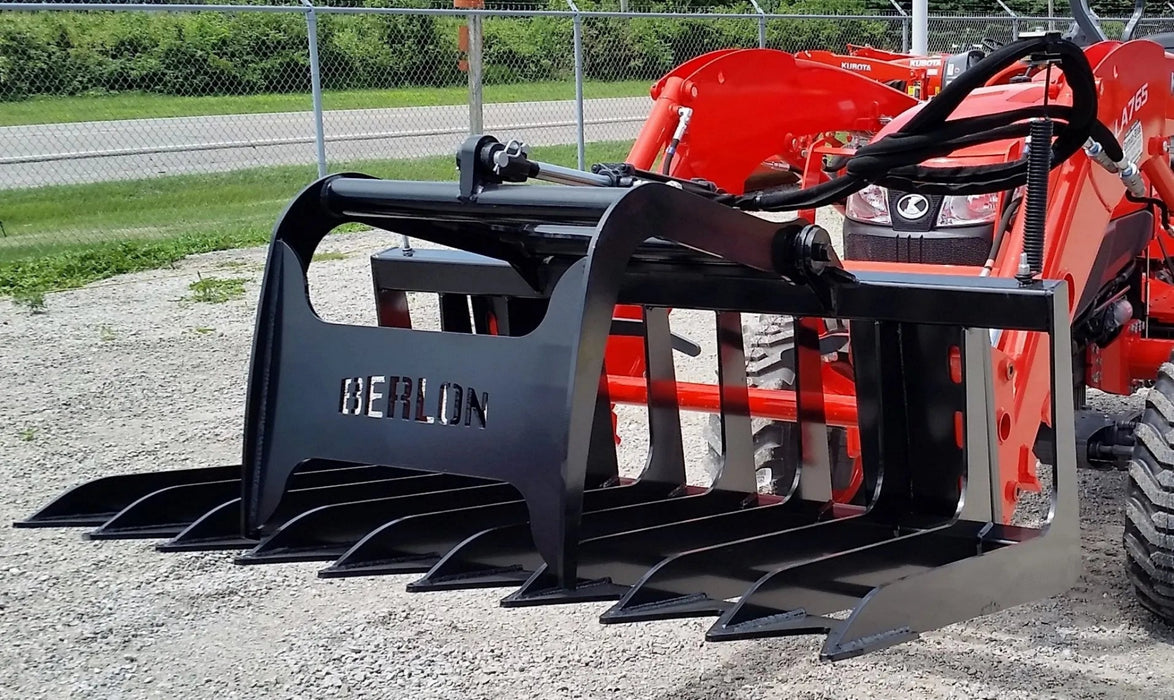

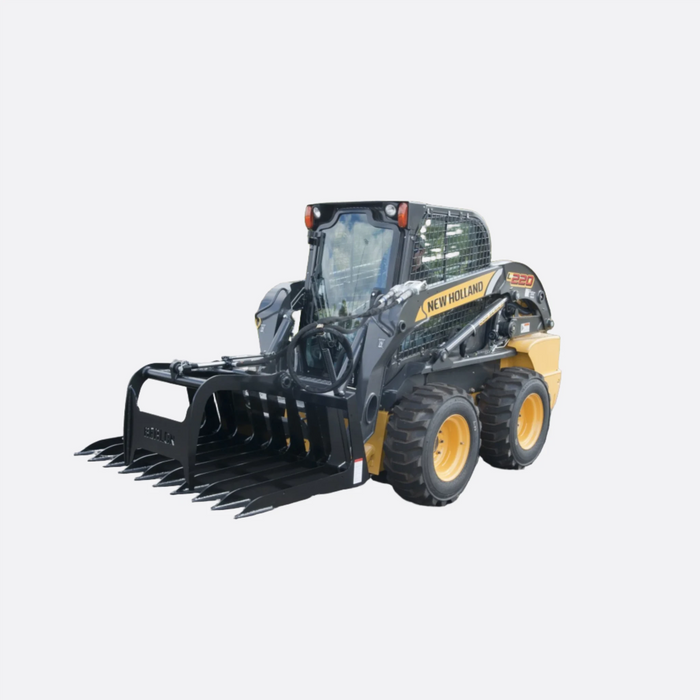

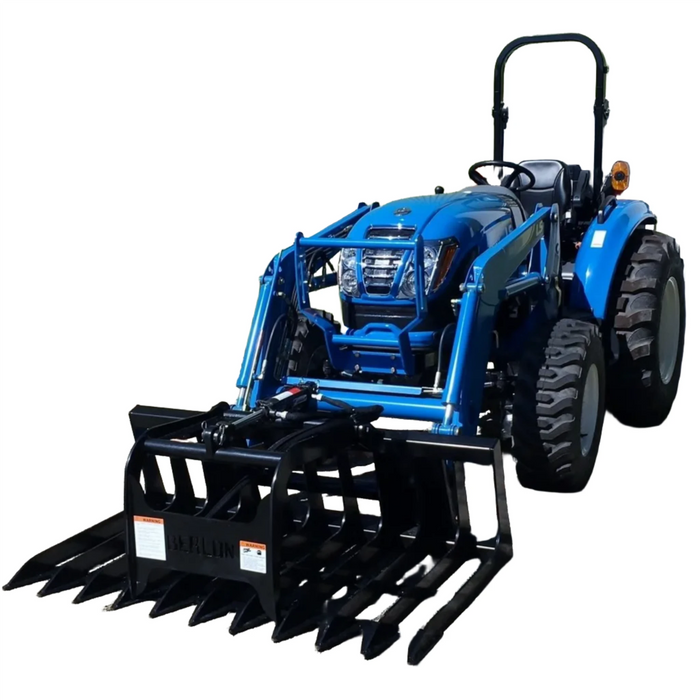

Berlon | Light Duty Grapple Series | Skid Steer & Tractor Grapple

Upgrade your compact tractor or small skid loader with Berlon's Light Duty Grapple, purpose-built for efficient performance in tight spaces. Designed for machines boasting 50HP or less, this grapple delivers unparalleled versatility and reliability.

Crafted with precision engineering, our Light Duty Grapple is engineered to streamline brush clean-up tasks effortlessly. Its lightweight yet robust construction ensures durability without compromising maneuverability, making it the perfect solution for handling various light-duty applications.

With Berlon's Light Duty Grapple, you can tackle brush clean-up with ease, optimizing your productivity while maintaining the impeccable quality you expect.

**Includes MPUF-1 Universal Mounting plate. Recommended for 50HP machines and less. **

Grapple Add-On Options

• Bolt-On Ends

Specifications

• Cylinder - 3,000 lb., 2.5” bore
• Hydraulics based on single cylinder
• Fully welded leading edge
• Scrap ends, hose & couplers, hose saver and needle valve included

• Model: LDGR-54

  • Inside Dimension: 54.0 in.
  • Outside Dimension: 55.5 in.
  • Height: 21.5 in.
  • Depth: 40.0 in.
  • Angle: 70 degrees
  • Grapple Opening: 41.0 in.
  • Weight: 491 lbs.
  • Space Between Tines: 6.0 in.
  • Tine Thickness: 3/8 in.
  • HD Package: N/A

• Model: LDGR-60

  • Inside Dimension: 60.0 in.
  • Outside Dimension: 61.5 in.
  • Height: 21.5 in.
  • Depth: 40.0 in.
  • Angle: 70 degrees
  • Grapple Opening: 41.0 in.
  • Weight: 524 lbs.
  • Space Between Tines: 6.0 in.
  • Tine Thickness: 3/8 in.
  • HD Package: N/A

• Model: LDGR-66

  • Inside Dimension: 66.0 in.
  • Outside Dimension: 67.5 in.
  • Height: 21.5 in.
  • Depth: 40.0 in.
  • Angle: 70 degrees
  • Grapple Opening: 41.0 in.
  • Weight: 557 lbs.
  • Space Between Tines: 6.0 in.
  • Tine Thickness: 3/8 in.
  • HD Package: N/A
