Heavy Duty Dual Spindle Cutter – Lift Type

Unmatched Performance for Heavy Duty Applications

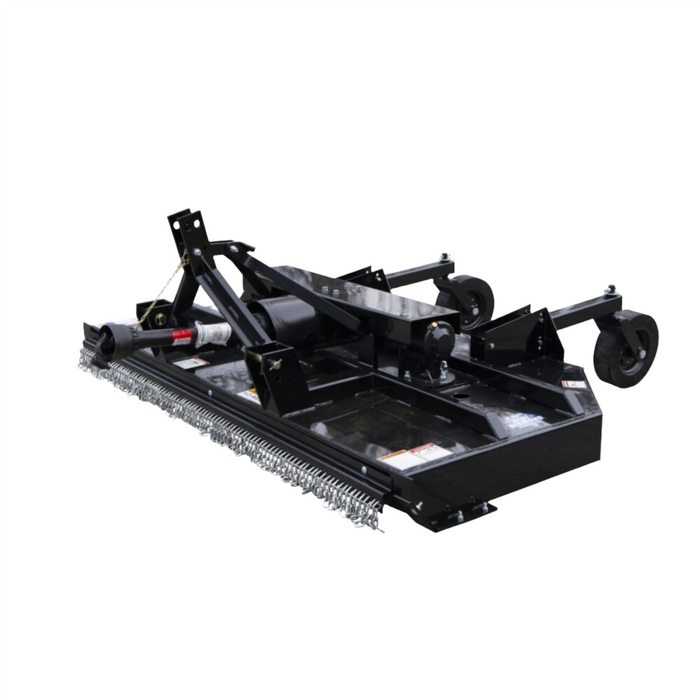

The Blue Diamond Heavy Duty Dual Spindle Cutter is engineered for demanding tasks such as cutting weeds, grass, and brush up to 3” in diameter. Designed for use with 42 hp or 52 hp tractors, these cutters are available in 8’ and 10’ widths, making them ideal for a range of heavy-duty applications.

Superior Cutting Efficiency

Featuring a dual spindle with two free-swinging blades each, the Blue Diamond cutter minimizes the shock of impact when encountering stationary objects. This advanced design ensures smooth and efficient cutting, reducing the risk of damage and extending the lifespan of the cutter.

Enhanced Durability and Protection

Equipped with a slip clutch and dual shock couplers, the Blue Diamond Dual Spindle Cutter protects the gearboxes and drivelines from damage, ensuring reliable performance and longevity. The standard driveline and clutch shields, along with front and rear chain discharge shields, provide added safety and durability.

Versatile Options

Available in two types—lift type and pull type—the Blue Diamond Heavy Duty Dual Spindle Cutter offers flexibility to suit your specific needs. Choose the lift type for superior maneuverability and ease of use in various terrains.

Ideal for Tractors

Designed to work seamlessly with 42 hp or 52 hp tractors, these heavy-duty cutters are the perfect choice for agricultural and land management tasks. Whether you're clearing large fields or maintaining overgrown areas, the Blue Diamond Dual Spindle Cutter delivers exceptional performance and reliability.

Features

• Fully welded cutter deck and gearbox channel
• 3” diameter cutting capacity
• 5-year limited gearbox warranty
• Replaceable wear skids
• Compact dual spindle design
• Slip clutch protection/dual couplers and front/rear chain discharge shields come standard
• 2-year warranty

Specifications

• Part Number: 403125

  • Model: 8'
  • Min. Horsepower: 42
  • Cutting Width: 96"
  • Transport Width: 98"
  • Hitch: Category 1 & 2
  • Cutting Height: 2”-10”
  • Max Cutting Capacity: 3”
  • Deck Thickness: 10 GA
  • Side Bands: 8”
  • PTO Drive Shaft: Series 5 w/Slip Clutch
  • Center Drive Shaft: Shock Coupler Protected
  • Stump Jumper: 5/8” Plate
  • Center Gearbox: 125 hp
  • Outboard Gearboxes: 100 hp
  • Wheel: 1250
  • Skid Shoes: Replaceable
  • Gearbox Warranty: 5 yr limited
  • Chain Guards: Standard

• Part Number: 403127

  • Model: 10'
  • Min. Horsepower: 52
  • Cutting Width: 120"
  • Transport Width: 122"
  • Hitch: Category 1 & 2
  • Cutting Height: 2”-10”
  • Max Cutting Capacity: 3”
  • Deck Thickness: 10 GA
  • Side Bands: 8”
  • PTO Drive Shaft: Series 5 w/Slip Clutch
  • Center Drive Shaft: Shock Coupler Protected
  • Stump Jumper: 5/8” Plate
  • Center Gearbox: 125 hp
  • Outboard Gearboxes: 100 hp
  • Wheel: 1480
  • Skid Shoes: Replaceable
  • Gearbox Warranty: 5 yr limited
  • Chain Guards: Standard
