The Connect Work Tools CH (oil fired) & CHG (gas fired) Series Hydraulic Breakers are designed for superior performance, durability, and efficiency, making them the ideal choice for construction, mining, quarrying, and demolition applications. Engineered for maximum impact energy, these excavator hammers are built to handle the toughest breaking jobs with ease.

With a gas-assist design, the CHG Series offers enhanced power and efficiency, reducing stress on the hydraulic system while delivering consistent, high-impact performance. Whether you’re breaking concrete, rock, or frozen ground, this hydraulic hammer for excavators ensures maximum productivity on every job.

CHG Series

Our small compact series breakers excel in handling tough projects within utility and municipal markets. From urban excavation and highway projects to building maintenance and demolition tasks, these breakers are designed to conquer challenges with ease.

CH Medium Series

With a sturdy construction and an optimized power-to-weight ratio, the medium series breakers are the ideal option for non-residential trenching, excavation, and rock quarry production. These breakers also shine in foundation and building demolition projects, thanks to their exceptional productivity. Their streamlined design is perfectly suited for narrow, deep trenches, and foundations.

CH Large Series

Experience time-saving high-energy production with CH large hydraulic breakers for your most demanding tasks. Designed for demolition, primary excavation, quarry work, tunneling, and underwater applications, these breakers outperform conventional blasting methods, offering precise and controlled breaking and demolition capabilities.

***Breaker prices include: mounting bracket, pins, hoses, Breaker Mounted Autolube,
Connect 1 Telematics, and Connect Service Kit.***

Specifications

CH Series Oil-Fired Breaker Specs

Model: CH120

• Ft. Lb. Class: 3,000
• Working Weight: 3,200 lbs
• Carrier Weight: 38,000 – 48,000 lbs
• Tool Diameter: 4.72"
• Impact Rate: 400 – 500 BPM
• Flow Range: 26 – 39 GPM

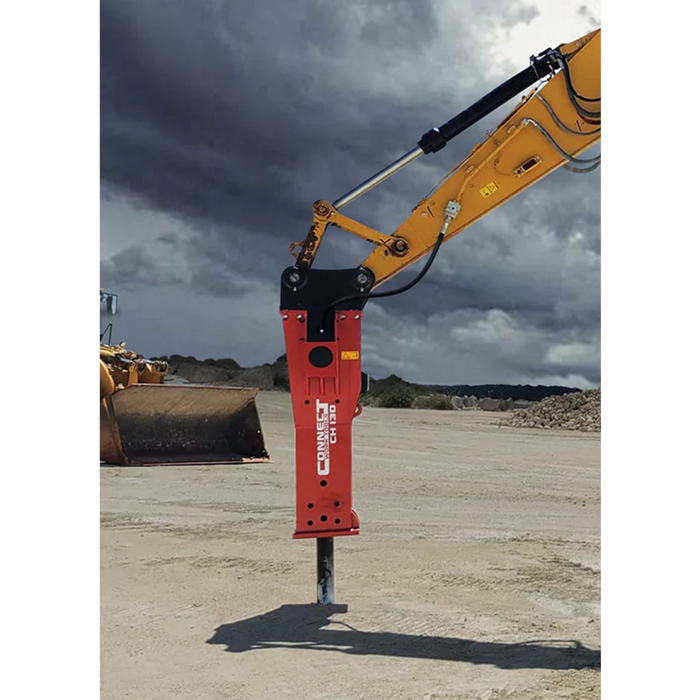

Model: CH130

• Ft. Lb. Class: 4,000
• Working Weight: 3,725 lbs
• Carrier Weight: 48,000 – 55,000 lbs
• Tool Diameter: 5.11"
• Impact Rate: —
• Flow Range: 34 – 39 GPM

Model: CH140

• Ft. Lb. Class: 5,500
• Working Weight: 4,620 lbs
• Carrier Weight: 52,000 – 60,000 lbs
• Tool Diameter: 5.51"
• Impact Rate: —
• Flow Range: 45 – 53 GPM

Model: CH150

• Ft. Lb. Class: 7,500
• Working Weight: 5,380 lbs
• Carrier Weight: 52,000 – 75,000 lbs
• Tool Diameter: 5.91"
• Impact Rate: 350 – 450 BPM
• Flow Range: 45 – 53 GPM

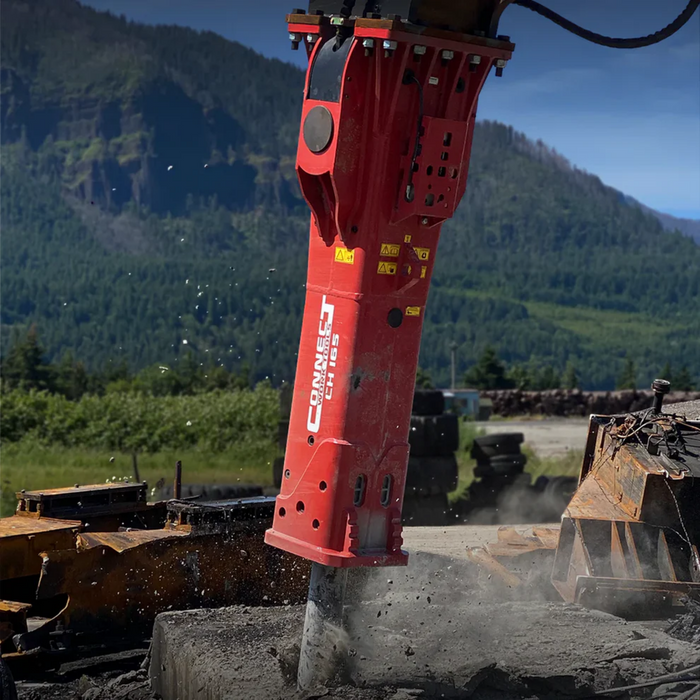

Model: CH165

• Ft. Lb. Class: 10,000
• Working Weight: 6,504 lbs
• Carrier Weight: 60,000 – 80,000 lbs
• Tool Diameter: 6.5"
• Impact Rate: —
• Flow Range: 50 – 58 GPM

Model: CH175

• Ft. Lb. Class: 12,000
• Working Weight: 8,270 lbs
• Carrier Weight: 80,000 – 120,000 lbs
• Tool Diameter: 6.89"
• Impact Rate: 300 – 400 BPM
• Flow Range: 55 – 63 GPM

Model: CH180

• Ft. Lb. Class: 14,000
• Working Weight: 12,130 lbs
• Carrier Weight: 100,000 – 140,000 lbs
• Tool Diameter: 7.09"
• Impact Rate: —
• Flow Range: 66 – 81 GPM

Model: CH205

• Ft. Lb. Class: 16,000
• Working Weight: 16,530 lbs
• Carrier Weight: 120,000+ lbs
• Tool Diameter: 8.07"
• Impact Rate: —
• Flow Range: 79 – 106 GPM

CHG Series Gas-Fired Breaker Specs

Model: CHG2

• Ft. Lb. Class: 250
• Working Weight: 326 lbs
• Carrier Weight: 2,200 – 6,600 lbs
• Tool Diameter: 1.56"
• Impact Rate: 700 – 1,500 BPM
• Flow Range: 4 – 9 GPM

Model: CHG3

• Ft. Lb. Class: 400
• Working Weight: 414 lbs
• Carrier Weight: 4,400 – 9,900 lbs
• Tool Diameter: 2.15"
• Impact Rate: 450 – 1,150 BPM
• Flow Range: 6.6 – 11.9 GPM

Model: CHG6

• Ft. Lb. Class: 500
• Working Weight: 656 lbs
• Carrier Weight: 6,000 – 10,000 lbs
• Tool Diameter: 2.63"
• Impact Rate: 632 – 1,500 BPM
• Flow Range: 10 – 22 GPM

Model: CHG7

• Ft. Lb. Class: 750
• Working Weight: 746 lbs
• Carrier Weight: 8,500 – 12,000 lbs
• Tool Diameter: 2.65"
• Impact Rate: 600 – 1,100 BPM
• Flow Range: 10 – 22 GPM

Model: CHG9

• Ft. Lb. Class: 1,000
• Working Weight: 960 lbs
• Carrier Weight: 10,000 – 18,000 lbs
• Tool Diameter: 2.93"
• Impact Rate: 450 – 750 BPM
• Flow Range: 10.6 – 21.1 GPM

Model: CHG10

• Ft. Lb. Class: 1,500
• Working Weight: 1,245 lbs
• Carrier Weight: 12,000 – 24,000 lbs
• Tool Diameter: 3.32"
• Impact Rate: 400 – 750 BPM
• Flow Range: 11.9 – 22.5 GPM

Model: CHG15

• Ft. Lb. Class: 2,500
• Working Weight: 2,156 lbs
• Carrier Weight: 30,000 – 40,000 lbs
• Tool Diameter: 3.90"
• Impact Rate: 400 – 750 BPM
• Flow Range: 21.1 – 29 GPM
