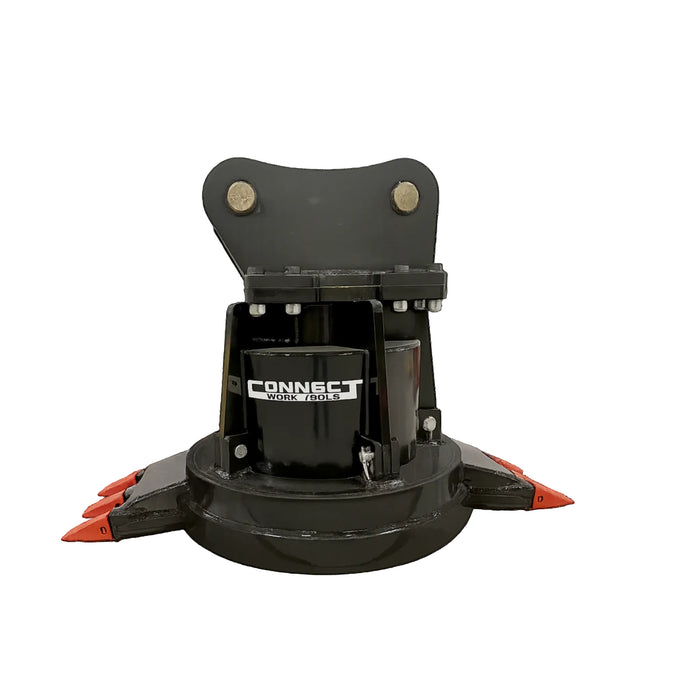

Connect Work Tools CMG Series Excavator Electromagnets

Excavator-Grade Magnetic Attachment for Heavy-Duty Scrap, Demolition & Recycling

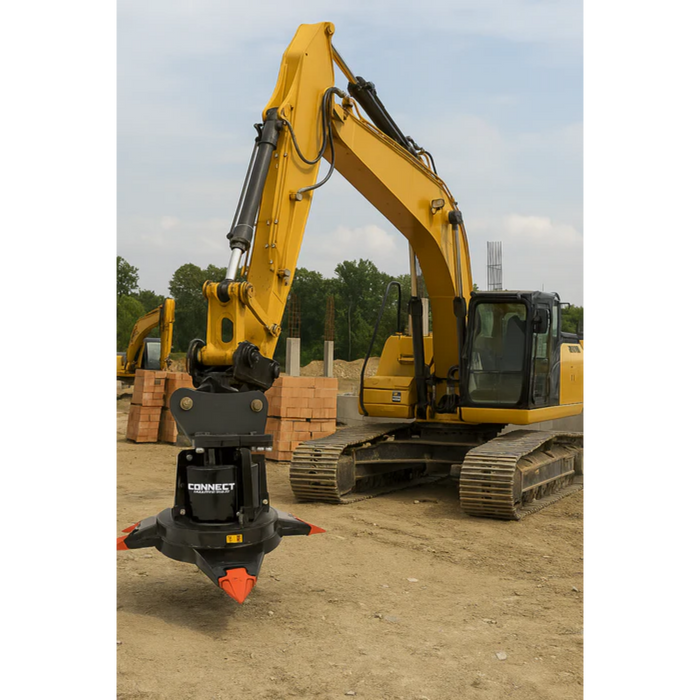

The CMG Series offers three fully hydraulic models (38″ to 50″) built for excavators. These self-contained hydraulic magnets operate directly from the auxiliary hydraulic circuit; no generator or electrical connection is required.

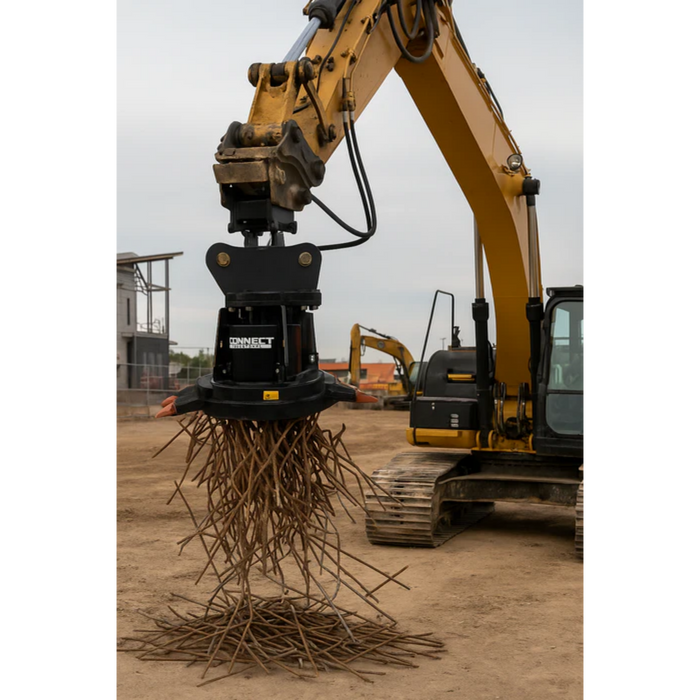

Designed with integrated teeth, each magnet rakes debris while extracting ferrous material for faster, cleaner operation. The teeth are standard Esco teeth with keepers for durability and easy replacement.

Every unit comes equipped with a heavy-duty bracket and pins, ready for use with a coupler or straight pin-on setup.

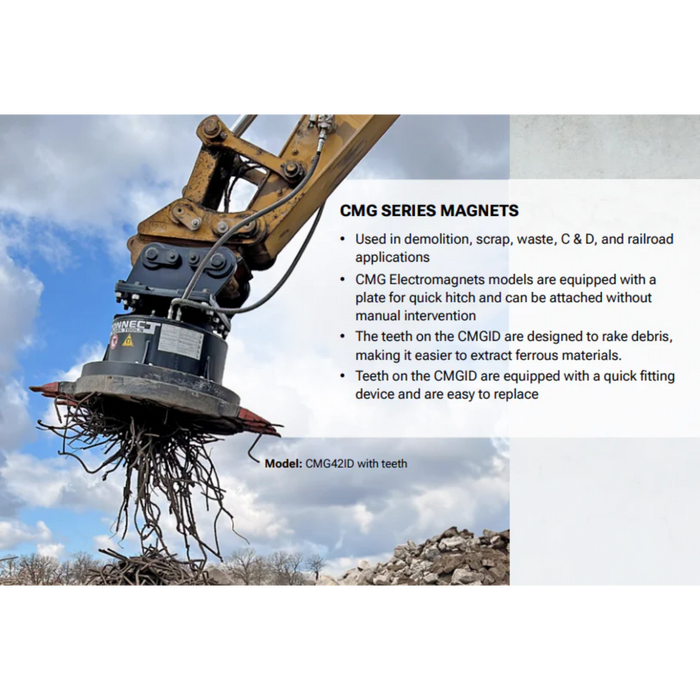

Explore Connect Work Tools’ CMG Series hydraulic magnets with teeth, designed for diverse applications including demolition, scrap, waste, C&D, and railroad projects. The specialized teeth are designed for debris raking, simplifying the extraction of ferrous materials. Equipped with a quick-fitting device, the teeth can be easily replaced. These magnets also feature a plate for quick hitch, enabling hassle-free attachment without manual intervention.

Key Features

Entirely Hydraulic Design: The self-contained system runs directly off the excavator's auxiliary hydraulic circuit, eliminating the need for a generator or electrical connection.

Multiple Models Available: Choose from 38″, 42″, and 50″ diameters (weights ranging from 2,646 to 4,189 lbs.) to match carrier sizes from 28,000 to 64,000 lbs.

High Power Output: Ranges from 4.5 kW to 7 kW, delivering strong lifting capacity for heavy ferrous materials.

Durable Options: Available in models with teeth (standard Esco teeth with keepers for raking debris) or with chains for versatile lifting.

Heavy-Duty Build: Equipped with a solid bracket and pins, adaptable for use with a coupler or straight pin-on attachment.

Efficient Flow Range: Operates between 10–40 GPM (depending on model) for compatibility with a wide range of excavators.

Reliable Voltage Standard: All models run at 220 V for consistent performance.

Specifications

Model: CMG38ID (With Teeth)

• Weight: 2,646 lbs
• Carrier Weight: 28,000 – 34,000 lbs
• Flow Rate: 10 – 40 GPM
• Diameter: 38"
• Power: 4.5 kW
• Voltage: 220V

Model: CMG42ID (With Teeth)

• Weight: 3,046 lbs
• Carrier Weight: 38,000 – 46,000 lbs
• Flow Rate: 10.5 – 40 GPM
• Diameter: 42"
• Power: 5.5 kW
• Voltage: 220V

Model: CMG50ID (With Teeth)

• Weight: 4,189 lbs
• Carrier Weight: 52,000 – 64,000 lbs
• Flow Rate: 12 – 40 GPM
• Diameter: 50"
• Power: 7 kW
• Voltage: 220V

Model: CMG42IC (With Chains)

• Weight: 2,315 lbs
• Carrier Weight: 38,000 – 46,000 lbs
• Flow Rate: 10.5 – 40 GPM
• Diameter: 42"
• Power: 5.5 kW
• Voltage: 220V
