Plate Compactor for Excavators by Connect Work Tools
The excavator mounted compactor for CWT is engineered to provide impressive vibratory force. They excel in many different applications, from driving guardrail posts, rail and I-beams, seawalls and piling, driving wood posts, compacting soil and other material, and more.
CWT's CC compactors have integrated flow control valves and self aligning bearings. They also feature maintenance-free oil lubrication system. Featuring a high-performance hydraulic motor that is capable of operating at 2,000 RPM, these compactors are make light work of any job. A heavy duty frame and base plate ensures a long and durable working life.
**Plate Compactor comes with mounting bracket, hoses, and pins. Hydraulic couplers are not included
Features
- Offering five (5) models to fit skid loaders, backhoes, and excavators which reduces manpower requirements and provides work safety compared to hand-held tamper operation
-

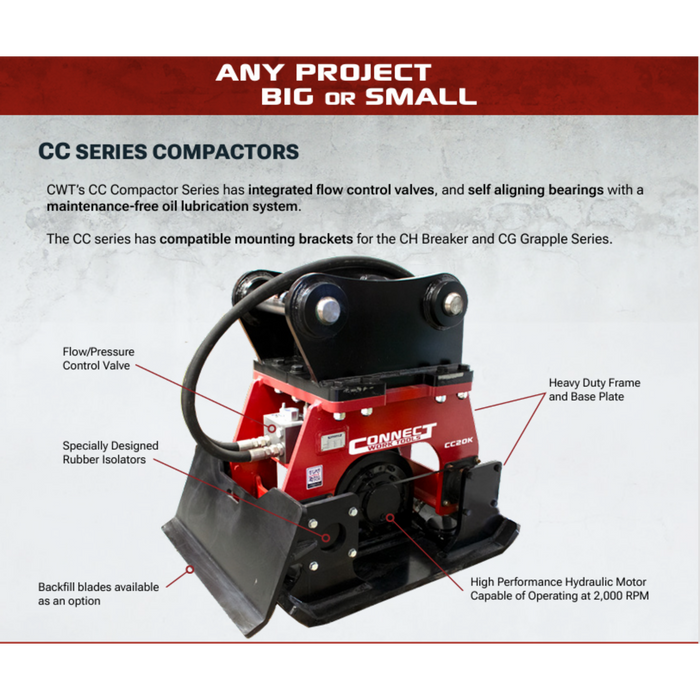

The CC Series compactor’s features include oil splash bearings that provide maintenance-free (no greasing) lubrication
-
Compactor Control Valve controls the flow, pressure and, regeneration
-
All CC compactors are equipped with heavy-duty frames and base plates, containing industrial-strength rubber isolators. High-performance hydraulic motors capable of operating at 2000 rpm
-
Compatible Mounting Brackets with CH Breaker Series and CG Grapple Series
-
Optional: Backfill blades for CC8K-22K models
Specifications
CC4K
- Working Weight: 550 lbs
- Carrier Weight: 7,000 – 10,000 lbs
- Compaction Plate Size: 16" × 28"
- Impact Force: 3,500 lbs
- Impact Frequency: 2,100 CPM
CC8K
- Working Weight: 850 lbs
- Carrier Weight: 10,000 – 20,000 lbs
- Compaction Plate Size: 24" × 34"
- Impact Force: 6,500 lbs
- Impact Frequency: 2,100 CPM
CC14K
- Working Weight: 1,675 lbs
- Carrier Weight: 30,000 – 45,000 lbs
- Compaction Plate Size: 30" × 38"
- Impact Force: 11,000 lbs
- Impact Frequency: 2,100 CPM
CC20K
- Working Weight: 2,135 lbs
- Carrier Weight: 40,000 – 60,000 lbs
- Compaction Plate Size: 32" × 46"
- Impact Force: 15,500 lbs
- Impact Frequency: 2,100 CPM
CC22K
- Working Weight: 2,930 lbs
- Carrier Weight: 60,000 – 80,000 lbs
- Compaction Plate Size: 34" × 50"
- Impact Force: 20,000 lbs
- Impact Frequency: 2,100 CPM
Note: Compactor prices include mounting bracket, pins, and hydraulic hoses.
