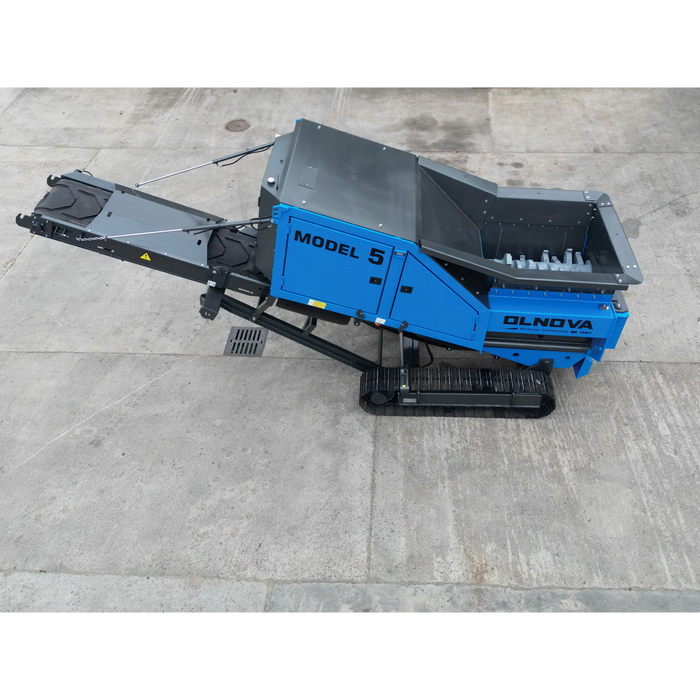

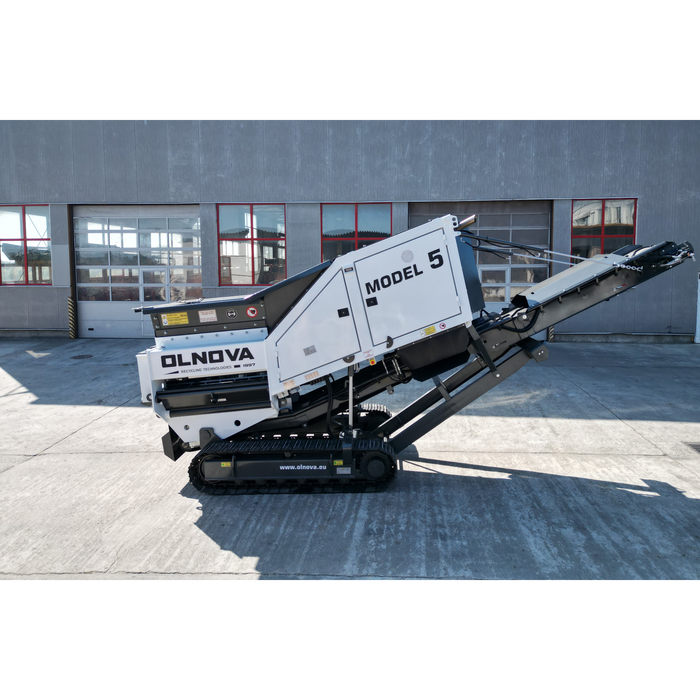

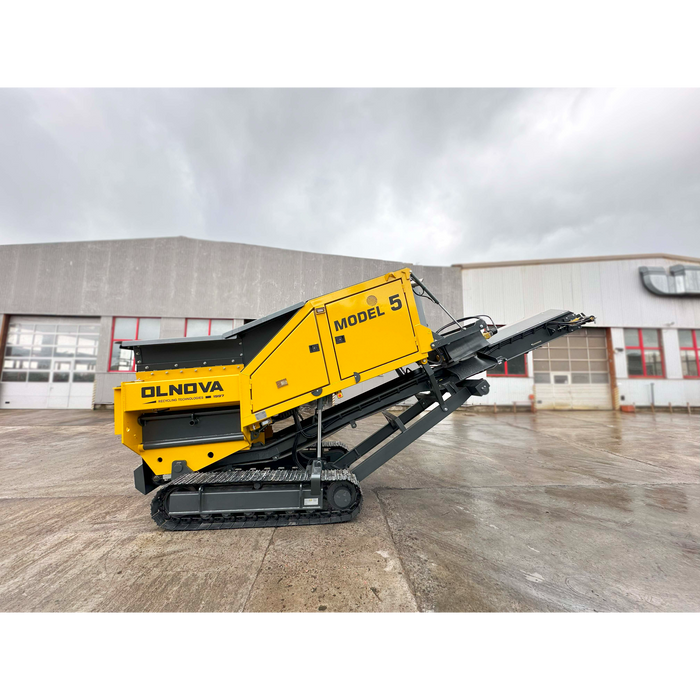

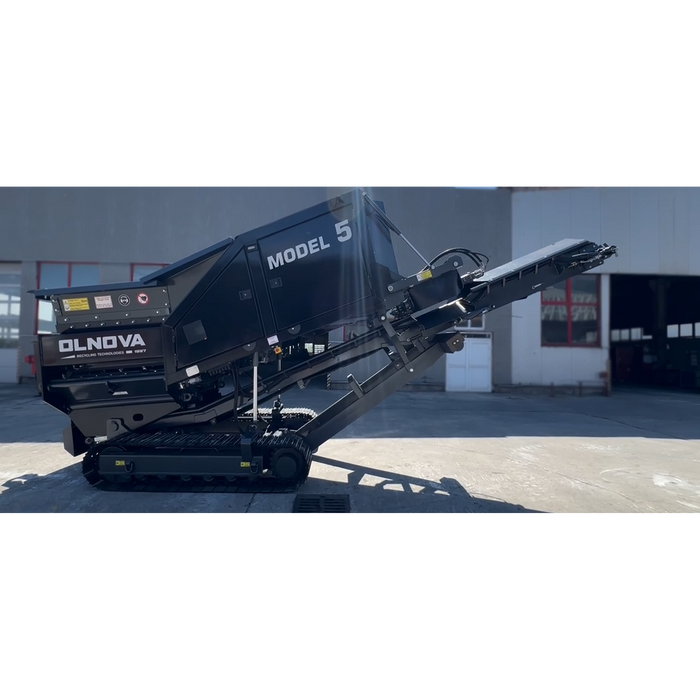

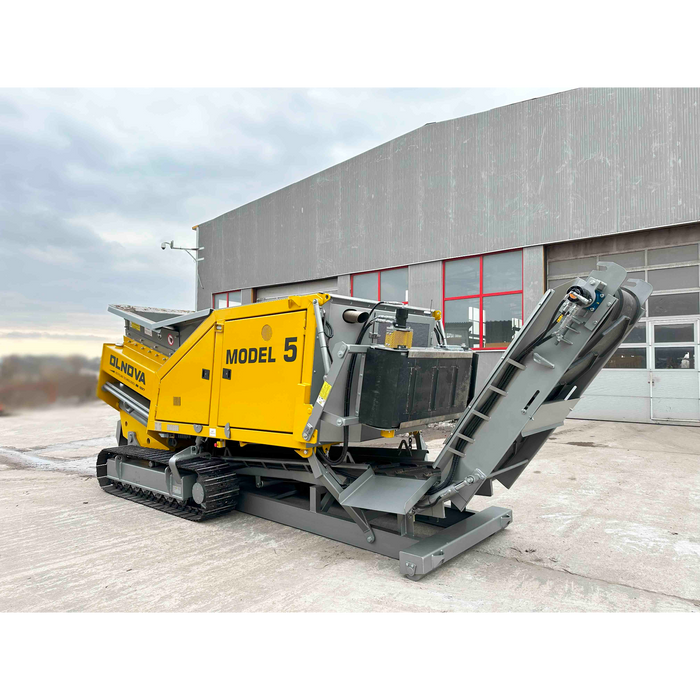

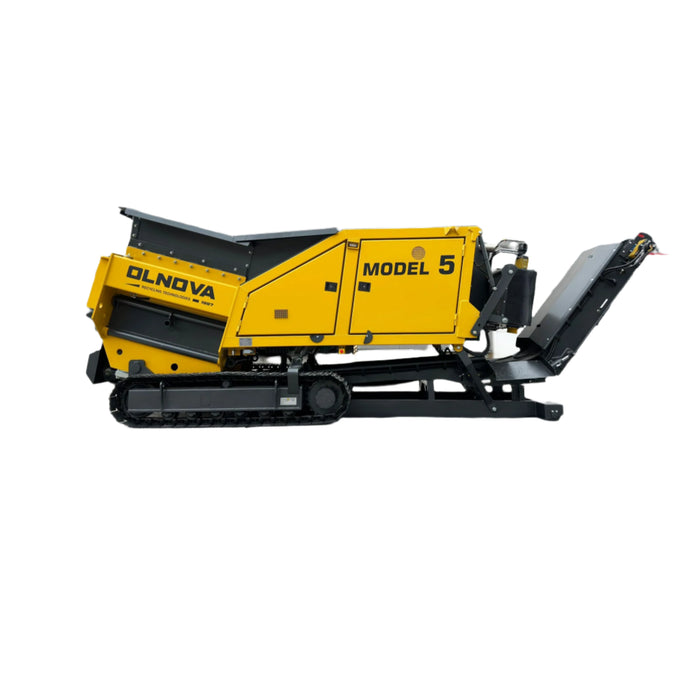

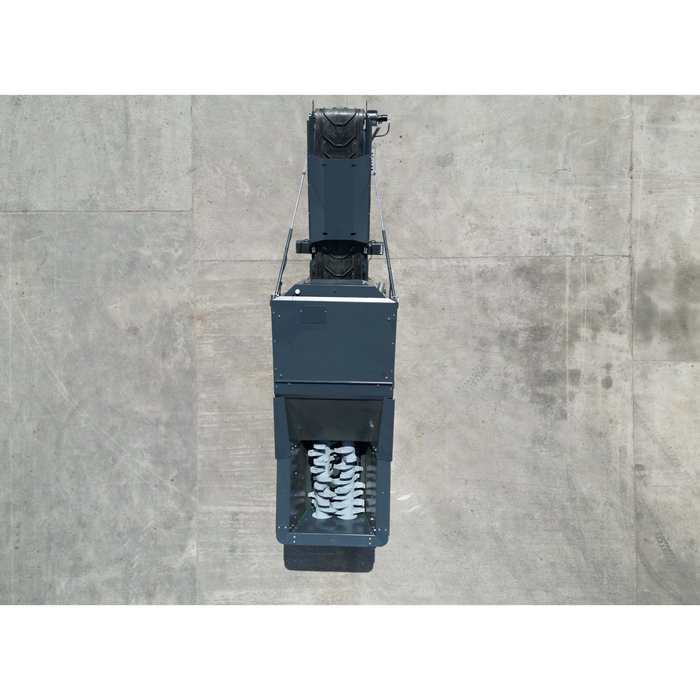

Olnova Model 5 Primary Shredder – Diesel, Tracked, High-Performance Waste Processing

The Olnova Model 5 Primary Shredder is a powerful, mobile, and versatile solution for heavy-duty material reduction in demolition, recycling, and waste processing applications. Designed for maximum productivity and cost-efficiency, this tracked shredder features a CAT C4.4 diesel engine delivering 188 HP (140 kW) of reliable power for consistent performance on the toughest jobs.

Ideal For

• Demolition contractors

• Recycling facilities

• Waste processing plants

• Construction & infrastructure projects

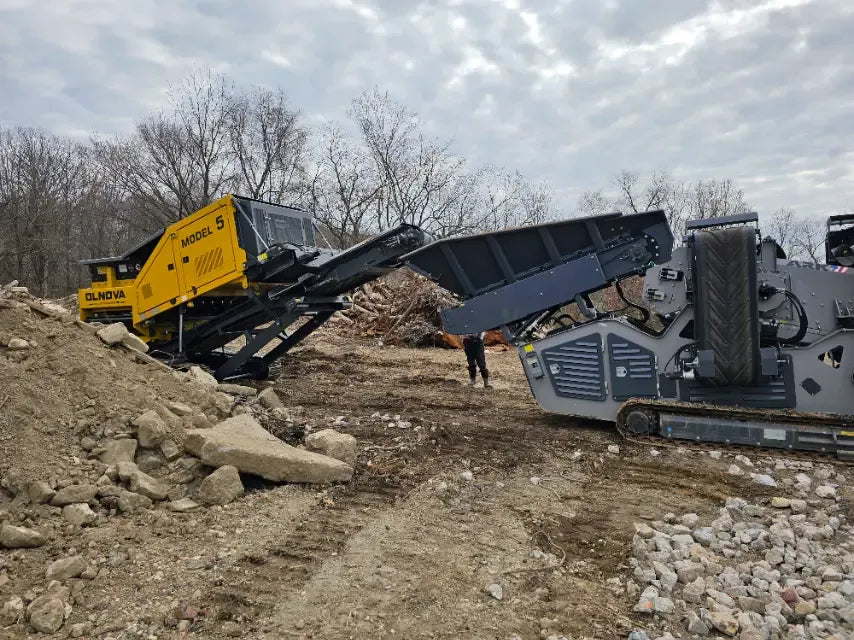

Whether you’re processing construction debris, reinforced concrete, asphalt, biomass, wood, or plastics, the Olnova Model 5 delivers unmatched shredding power, mobility, and operational efficiency

** Contact us for wire transfer or ACH payment request via support@constructiontoolsdirect.com**

Features

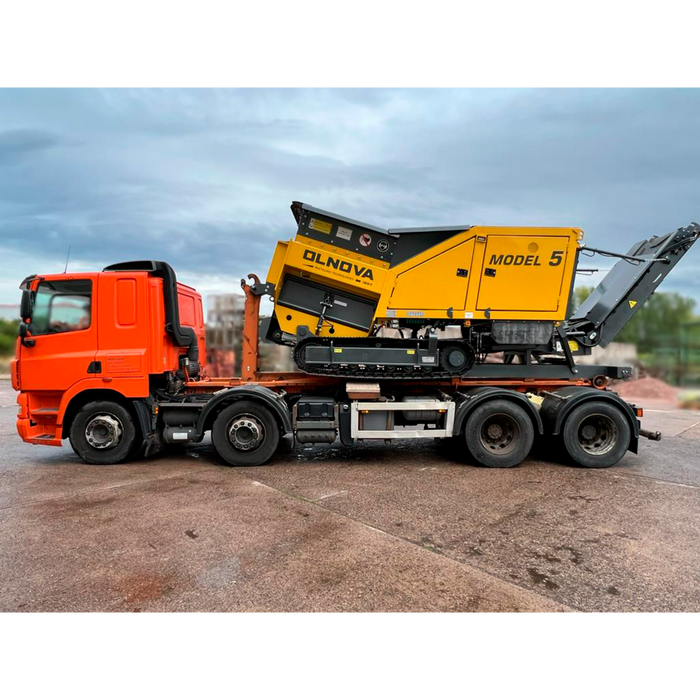

• High-Mobility Design – Equipped with track suspension and a hook lift system for exceptional maneuverability on worksites and easy transport between locations.

• Cost-Saving Diesel Power – The efficient CAT C4.4 engine reduces fuel consumption while providing the torque needed for demanding shredding operations.

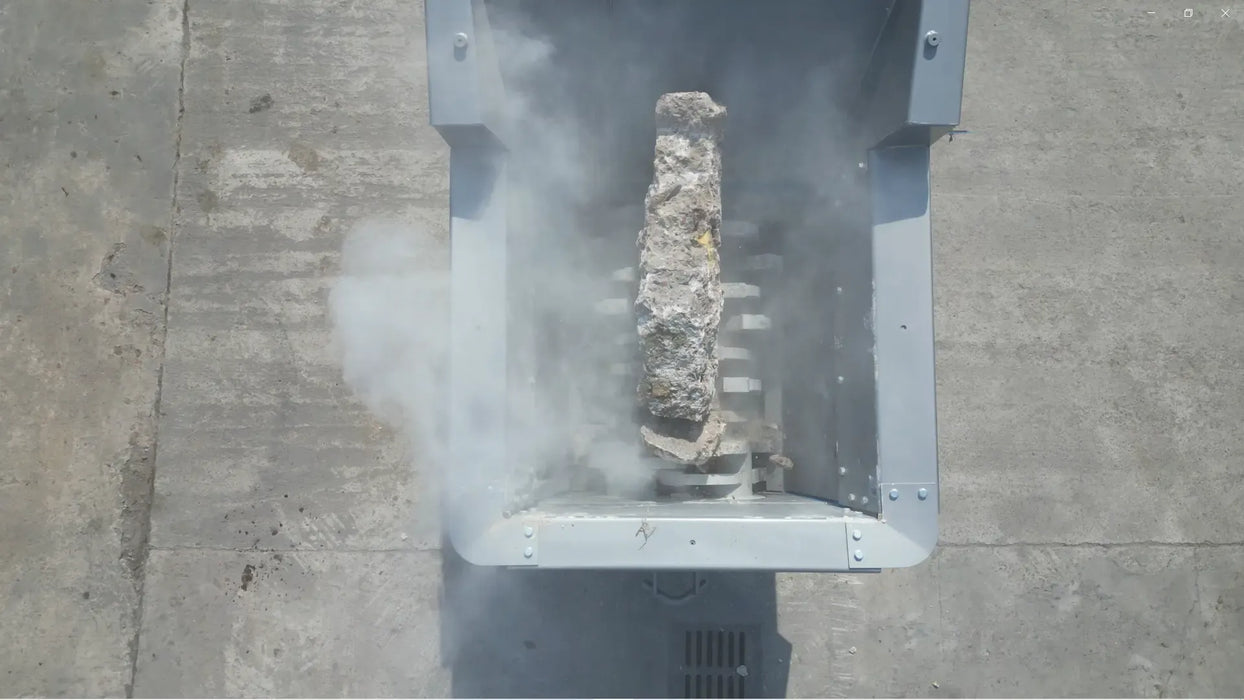

• Quick Shaft Replacement System – Minimizes downtime and keeps your shredder in production longer.

• Adjustable Side Screens – Control output size for various applications including C&D waste, concrete, asphalt, biomass, and plastics.

• Hydraulic Discharge Conveyor – Handles processed materials efficiently with a discharge height of 3100 mm.

• Reverse Shafts Mode – Prevents blockages and increases shredding efficiency.

• 3 Shredding Modes – Switch between Wood, Universal, and Asynchronous modes for maximum versatility.

• Conveyor Belt Magnet – Automatically separates ferrous metals for cleaner output and easier recycling.

• Tilting Hopper – Simplifies loading and improves workflow.

• Industry 4.0 Remote Monitoring – Includes a special module for worldwide performance analysis, customer feedback, and remote troubleshooting.

Performance Output

• C&D Waste: 80–100 t/h

• Concrete: 60–80 t/h

• Asphalt: 60–80 t/h

• Wood Waste: 10 t/h

• Biomass: 20 t/h

• Plastic Waste: 15 t/h

Specifications

• Type: Tracked

• Drive: Diesel Engine

• Power: 188 HP / 140 kW

• Shaft Speed: 20–40 rpm

• Discharge Height: 3100 mm

• Transport Dimensions (L×W×H): 6939×2200×2619 mm

• Operational Dimensions (L×H): 7797×3555 mm

• Weight: 15 t

• Shaft Length: 1500 mm

• Shaft Diameter: 680 mm

• Shaft Weight: 2700 kg per cassette
