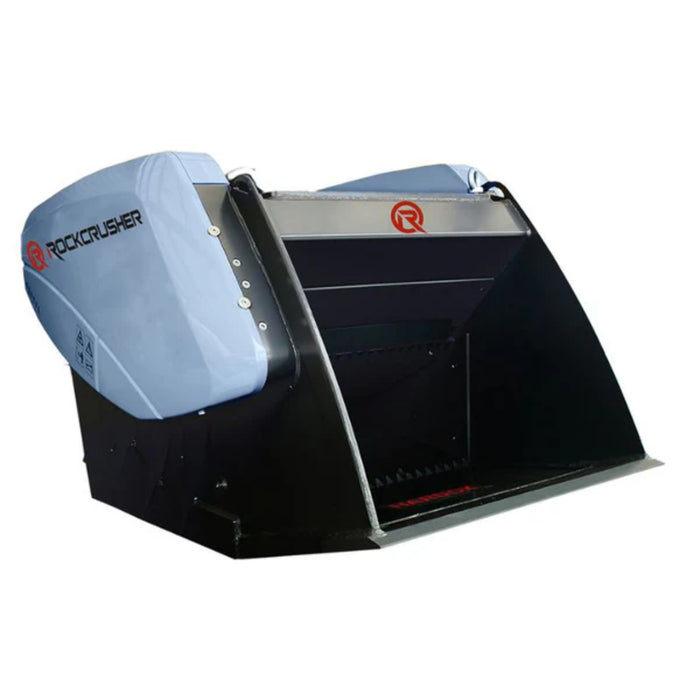

Excavator Rock Crusher Attachment by RockZone Americas

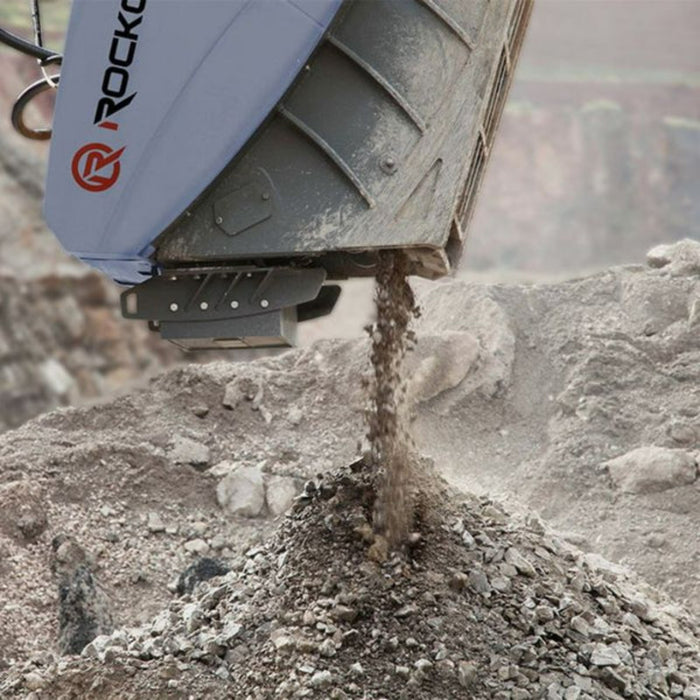

The best rock crusher on the market is made by RockZone Americas. It efficiently processes natural rock and concrete, creating high-quality reusable back-fill and aggregates.

Each Rockcrusher is made with the highest quality of materials and components. Wear parts are easily replaceable, ensuring a long-life for the equipment. This concrete crusher excels at crushing brick, concrete, natural rock, glass, tile, inert construction material.

With models catered for excavators ranging from 10-35+ tons, you are sure to find the right fit for your machine.

*PRICE DOES NOT INCLUDE MOUNTING PLATE*

Features:

• Replaceable wear parts
• Long-service life
• Reverse function - clears the crushing chamber quickly, enables jammed material to be ejected with the flick of a switch.
• Replaceable cheek plates - easily replaceable cheek plates which help avoid wear on the Rockcrusher frame, extending equipment lifespan.
• Quattro movement - unique to the Rockcrusher, this produces a consistent cubical shaped material that is suitable for use as aggregate. It also results in limited flakes and reduced wear on the jaw plates.

Why the Rock Crusher?

• Unmatched durability - Made with durable materials, the robust construction of the Rockcrusher ensures long-term use no matter the condition.
• Versatility - This attachment can adapt to different jobs, applications, and more. Perfect for concrete, asphalt, gravel, stone, and more.
• Efficiency - Consistent output sizes and high flow rates allow operators to process more material in less time. This leads to increased productivity and cost savings. Low operating costs of $1 per crushed ton.
• Reusable Backfill material - Crushed material can be used as backfill without further processing, saving you time and money.

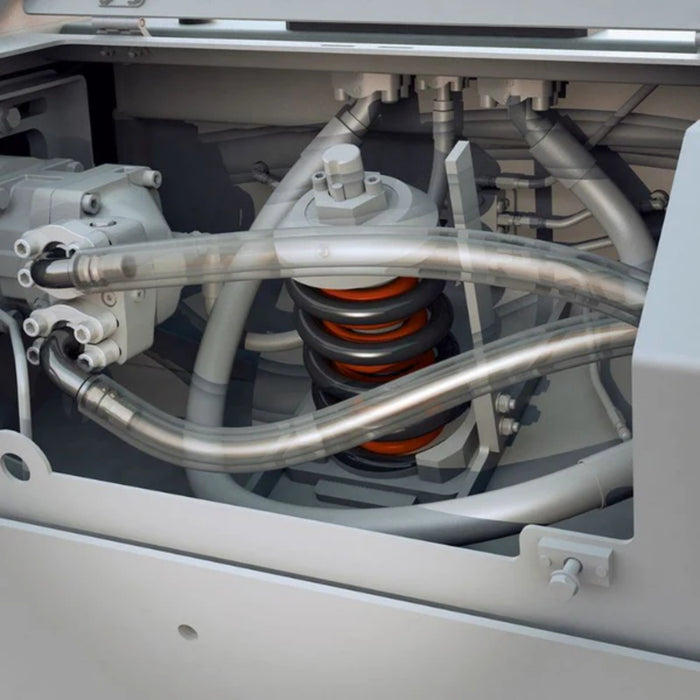

• Technological Advantages - double spring system reduces the potential for spring malfunction while stabilizing the toggle plate and buffering the movement of the jaw plates
• Robust Jawstock - Casted in one piece, the jawstock provides a robust base for the crusher, ensuring mechanical resilience and stability.

Applications

• Demolition
• Gravel Pits
• Construction sites
• Land Clearing
• Quarries

Options

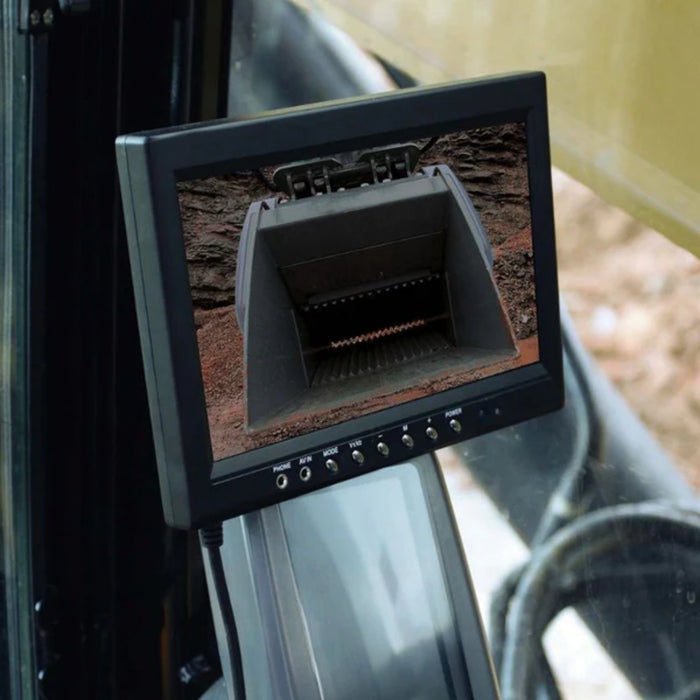

• Camera and monitor - watch the crushing chamber live
• Magnet - For sorting metals after crushing mixed material such as reinforced concrete

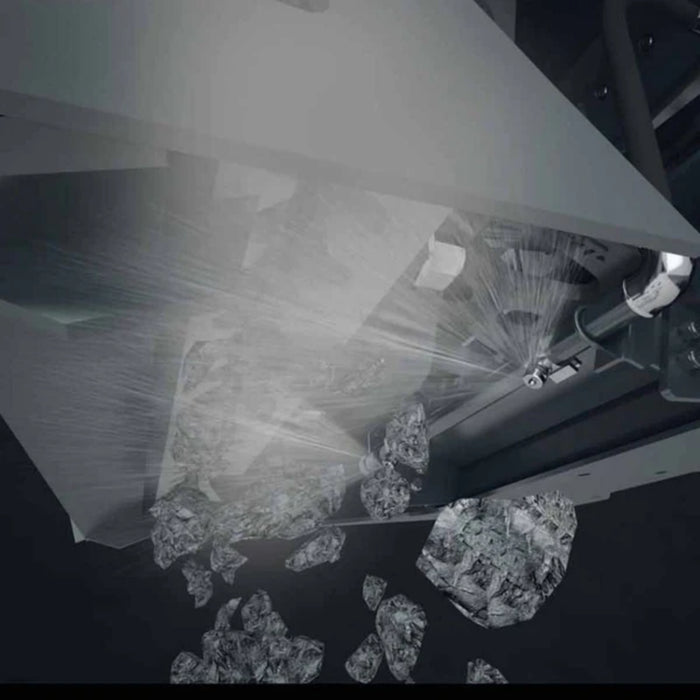

• Water spray bar - integrated spraying system for dust suppression

Specifications

Model: RC 7R

• Excavator Class: 10 – 15 tons
• Required Flow Rate: 27+ GPM (102+ l/min)
• Operating Pressure (Max): 3,190 PSI
• Inlet Opening: 26" × 20"
• Output Size Range: 0.5" – 4.0"
• Load Volume: 0.66 yd³
• Length: 76"
• Width: 43"
• Height: 51"
• Weight (Without Bracket): 4,410 lbs (2,000 kg)

Model: RC 9R

• Excavator Class: 15 – 25 tons
• Required Flow Rate: 39+ GPM (148+ l/min)
• Operating Pressure (Max): 3,190 PSI
• Inlet Opening: 30" × 20"
• Output Size Range: 0.5" – 4.0"
• Load Volume: 1.0 yd³
• Length: 87"
• Width: 48"
• Height: 54"
• Weight (Without Bracket): 6,600 lbs (2,994 kg)

Model: RC 11R

• Excavator Class: 25 – 35 tons
• Required Flow Rate: 53+ GPM (200+ l/min)
• Operating Pressure (Max): 3,190 PSI
• Inlet Opening: 37" × 21"
• Output Size Range: 0.5" – 5.0"
• Load Volume: 1.3 yd³
• Length: 93"
• Width: 57"
• Height: 55"
• Weight (Without Bracket): 9,020 lbs (4,090 kg)

Model: RC 13R

• Excavator Class: 35+ tons
• Required Flow Rate: 77+ GPM (290+ l/min)
• Operating Pressure (Max): 3,190 PSI
• Inlet Opening: 49" × 22"
• Output Size Range: 0.5" – 5.0"
• Load Volume: 2.2 yd³
• Length: 101"
• Width: 72"
• Height: 61"
• Weight (Without Bracket): 13,450 lbs (6,100 kg)
